| CODE | DILZKA7RC11S |
| ITEM | AFC 1802 |
| REPLACEMENT | 122905R0003 |
| DILZKAR7C11S | |
| FR7DII35V | |
| LD7RKII-11 6563 | |
| 90137 | |
| PRICE | contact us |
| MOQ | contact us |

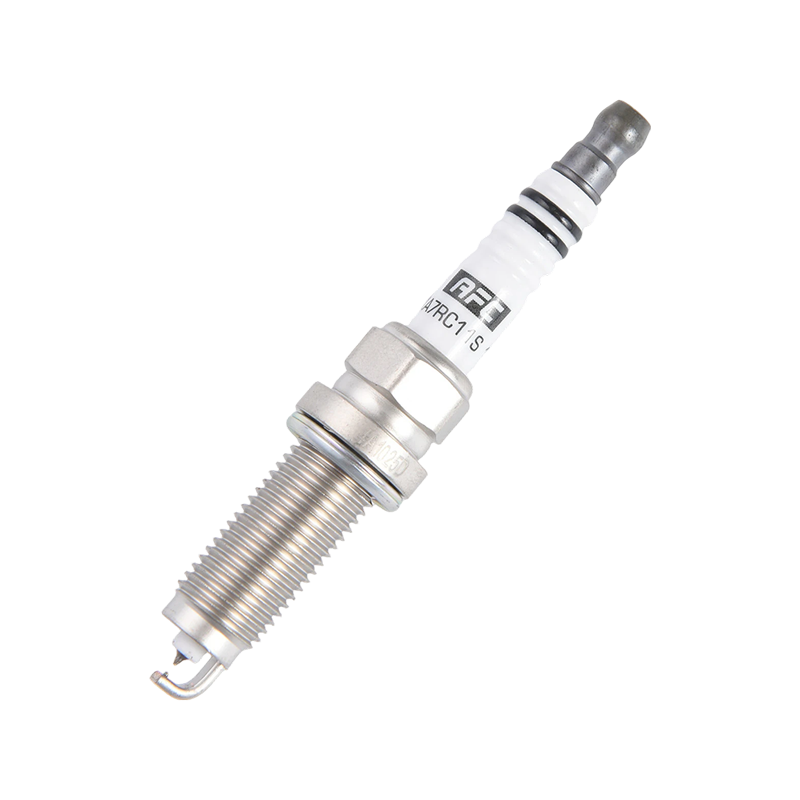

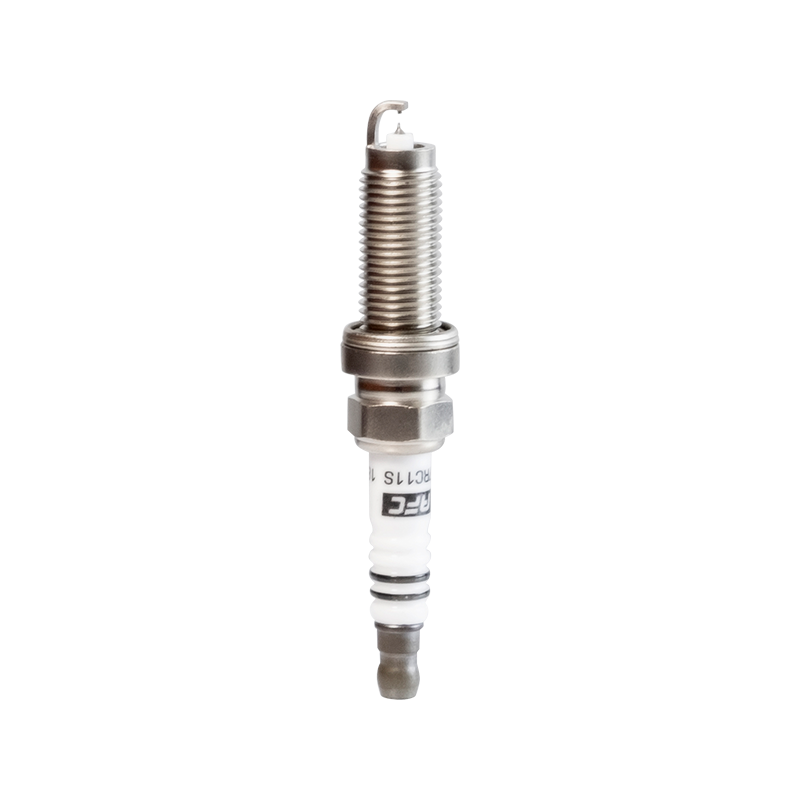

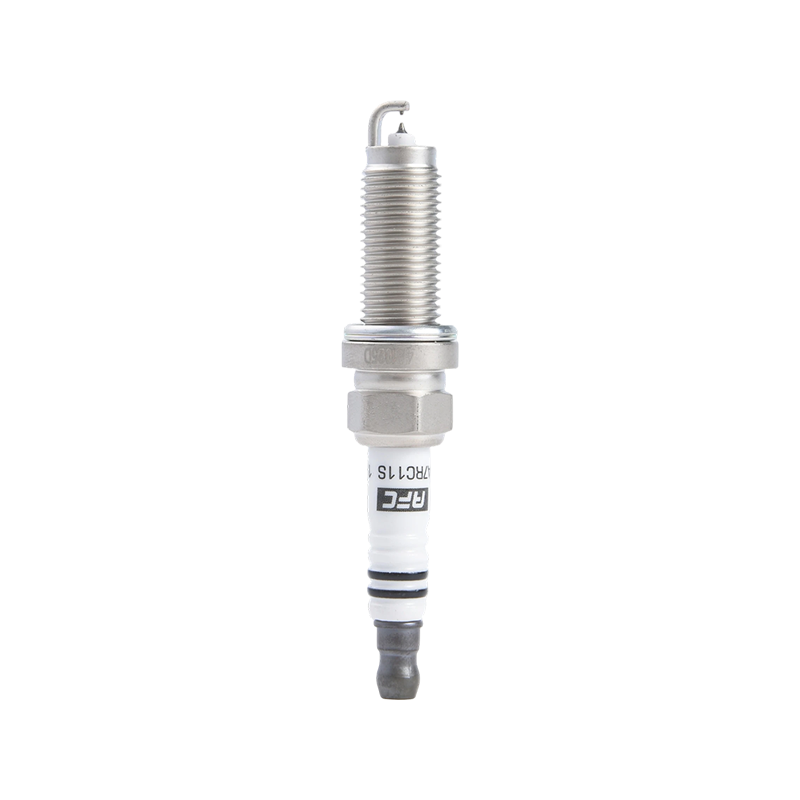

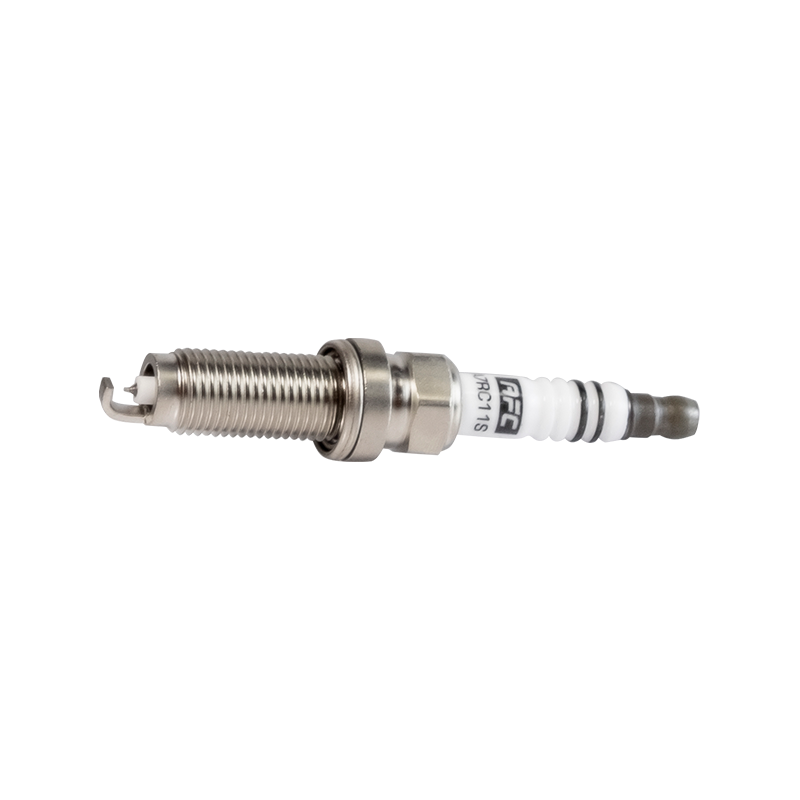

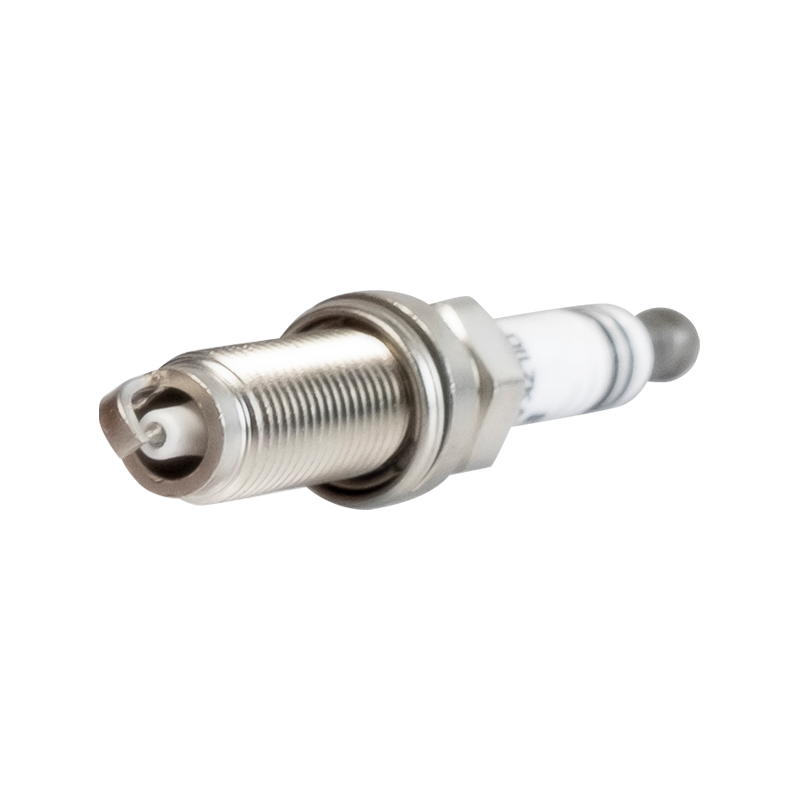

The 1802 DILZKA7RC11S is a dual iridium spark plug designed for the Honda XR-V. Featuring a dual iridium electrode design, it offers superior corrosion resistance, reduces electrode wear, and significantly improves ignition stability. Its service life reaches 80,000-100,000 kilometers, reducing maintenance costs. Furthermore, its cold-type heat range design effectively balances the cooling demands of turbocharged engines, preventing carbon buildup or pre-ignition knocking and avoiding the risk of electrode meltdown.
|
Shell |
|
|
Thread Diameter |
12mm |
|
Thread Pitch |
1.25mm |
|
Seat Type |
Gasket |
|
Reach |
26.5mm (1.043") |
|
Terminal Type |
Solid |
|
Overall Height |
ISO |
|
Gap |
1.1mm (.043") |
|
Torque |
20N.m |
|
Center Electrode |
|
|
Material |
Iridium |
|
Type |
Standard |
|
Size |
0.5mm |
|
Ground Electrode |
|
|
Material |
Iridium |
|
Type |
Standard |
|
Quantity |
1 |
|
Specifications |
|
|
Resistor |
Yes |
|
Heat Range |
7 |
|
Longevity |
80000-100000km |
