| CODE | DILF6RD-11 |
| ITEM | AFC 1704 |
| REPLACEMENT | 9091901247 |
| DILFR6D11/DILFR6A11/DILFR6J11 | |
| FR7NII35U | |
| KH6RHII-11 | |
| 6176 | |
| PRICE | contact us |
| MOQ | contact us |

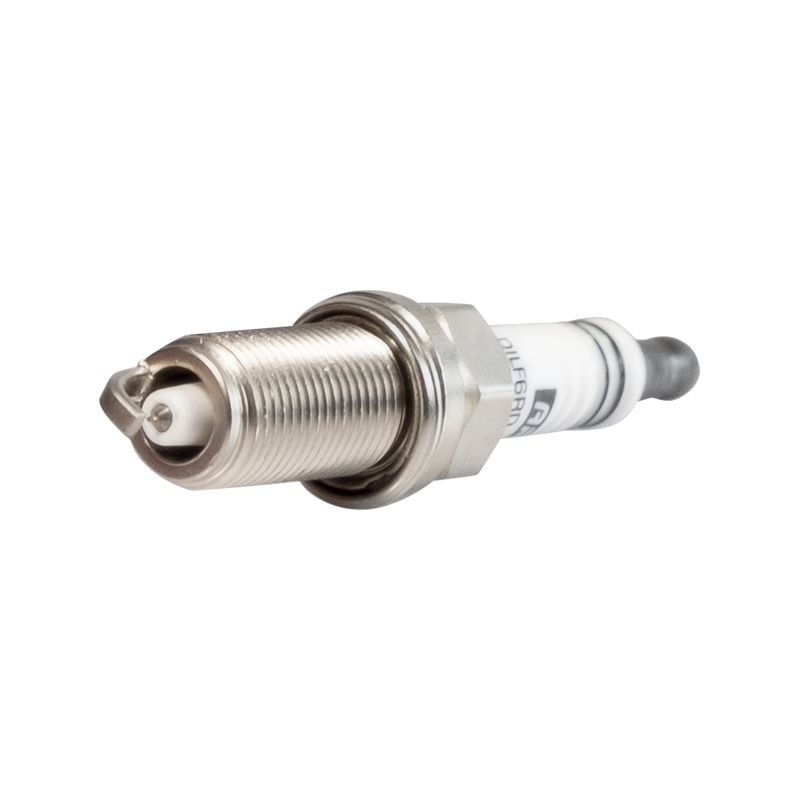

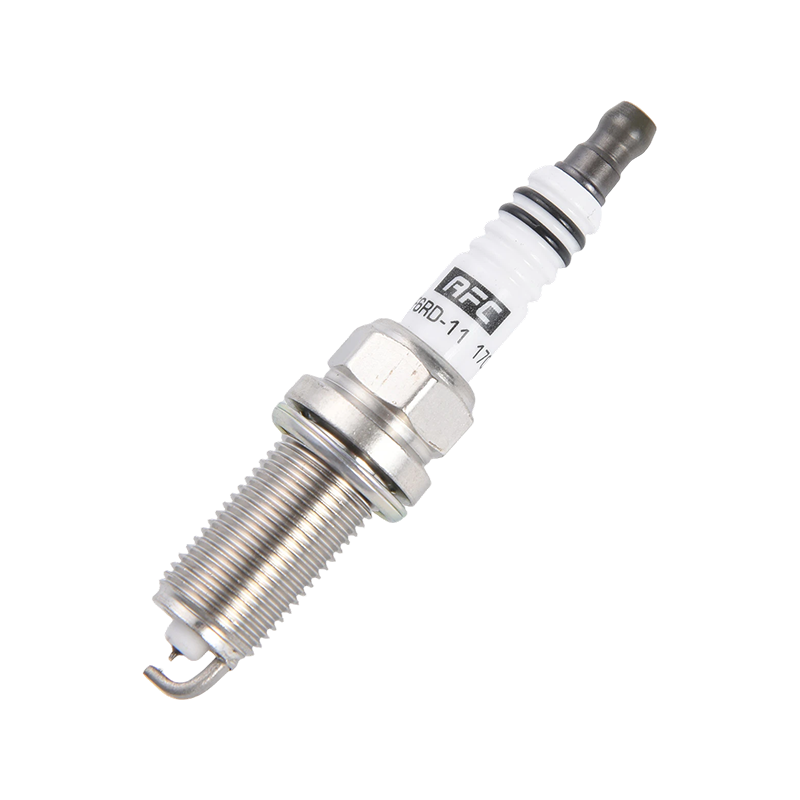

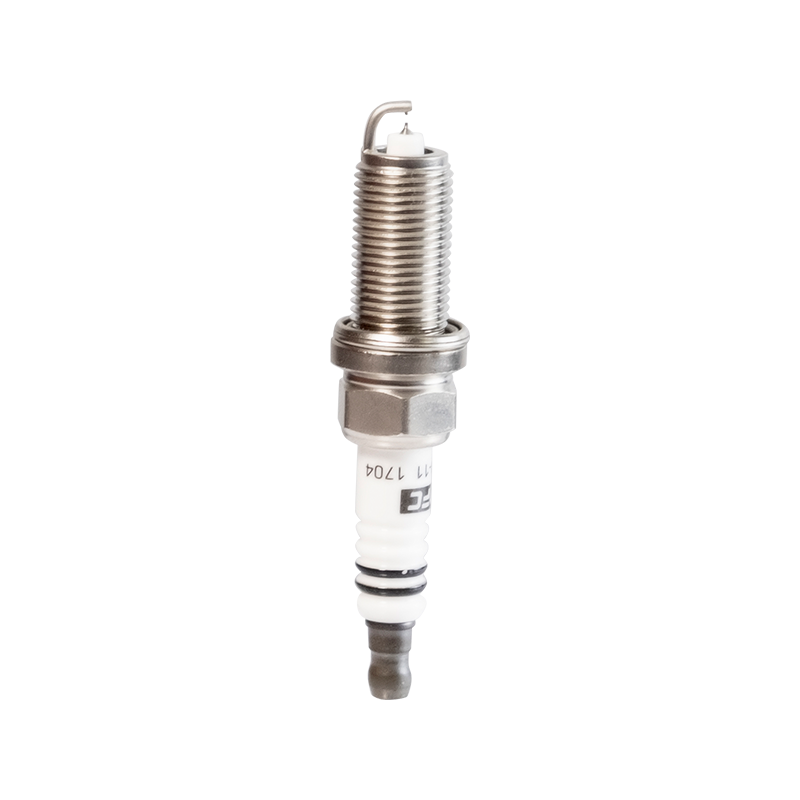

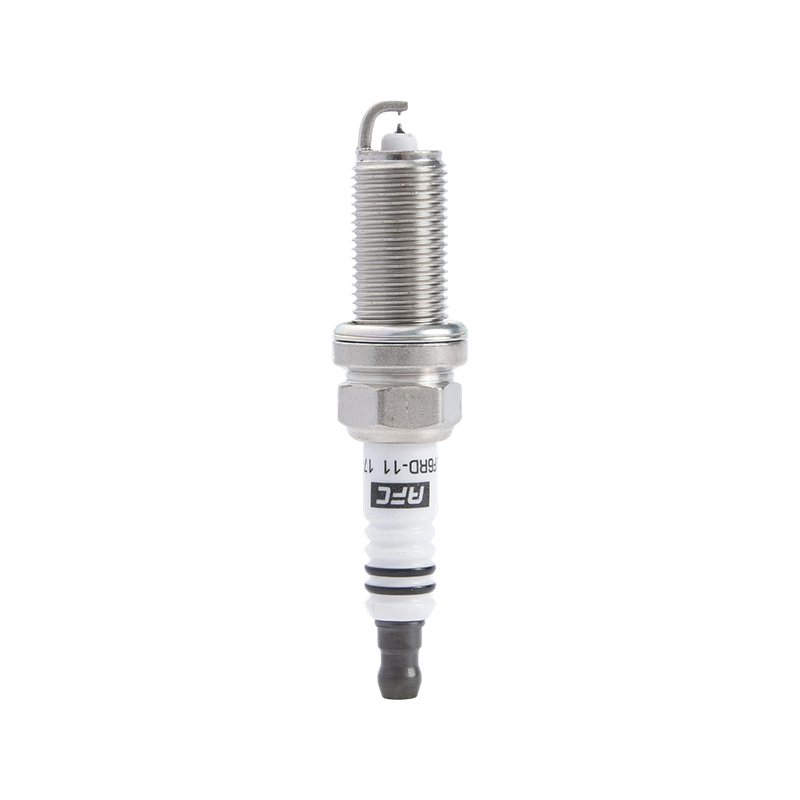

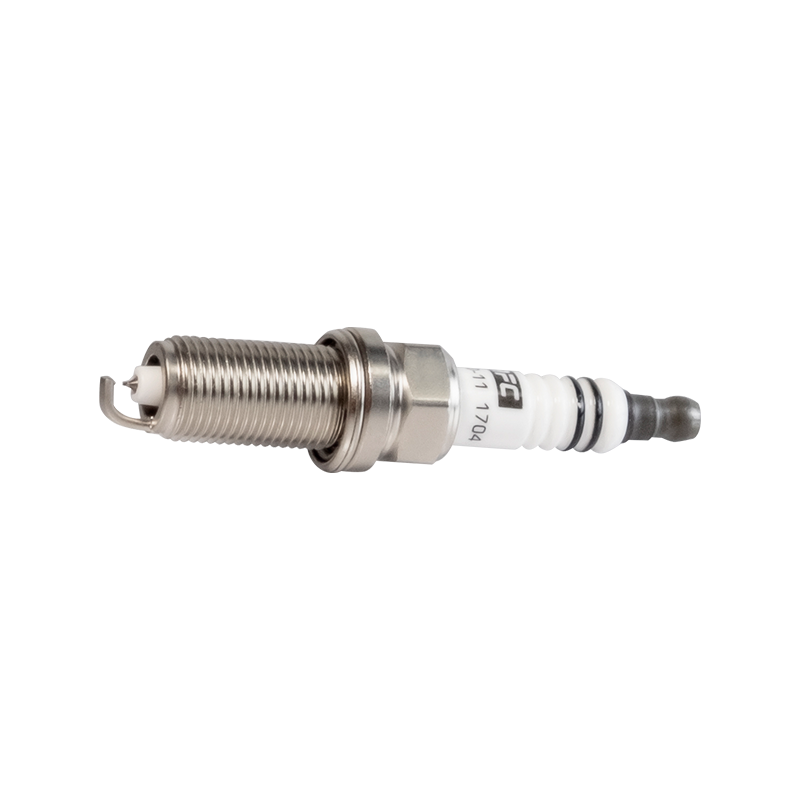

The 1704 DILF6RD-11 stands out among dual iridium spark plugs. It features a 14mm thread diameter and a 0.043-inch gap, making it suitable for various Japanese car brands such as Toyota and Lexus. Utilizing a dual iridium electrode design, it offers strong corrosion resistance, reduces electrode wear, and significantly improves ignition stability. Its service life reaches 80,000-100,000 kilometers, reducing maintenance costs. Furthermore, its heat range of 6 allows it to withstand the high-temperature, high-pressure conditions of turbocharged engines, effectively balancing heat dissipation efficiency and ignition performance, and avoiding the risk of electrode meltdown.
|
Shell |
|
|
Thread Diameter |
14mm |
|
Thread Pitch |
1.25mm |
|
Seat Type |
Gasket |
|
Reach |
26.5mm (1.043") |
|
Terminal Type |
Solid |
|
Overall Height |
ISO |
|
Gap |
1.1mm (.043") |
|
Torque |
30N.m |
|
Center Electrode |
|
|
Material |
Iridium |
|
Type |
Standard |
|
Size |
0.5mm |
|
Ground Electrode |
|
|
Material |
Iridium |
|
Type |
Standard |
|
Quantity |
1 |
|
Specifications |
|
|
Resistor |
Yes |
|
Heat Range |
6 |
|
Longevity |
80000-100000km |
