| CODE | DILKA7RC9H |
| ITEM | AFC 1710 |
| REPLACEMENT | 224011KC1C |
| DILKAR7C9H/DILKAR7D11H | |
| TORCH15-3777 | |
| 91215 | |
| PRICE | contact us |
| MOQ | contact us |

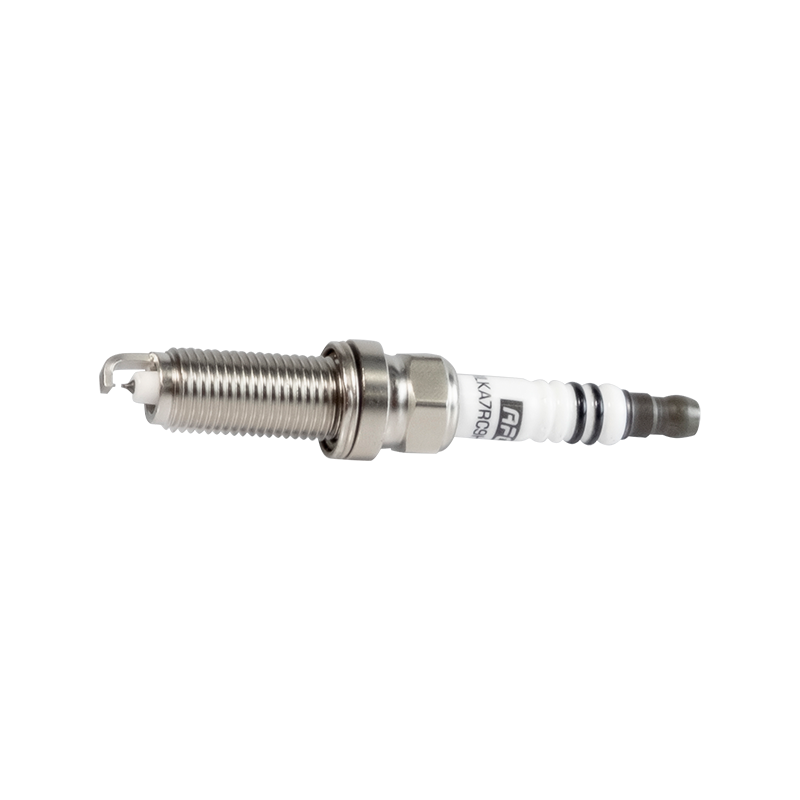

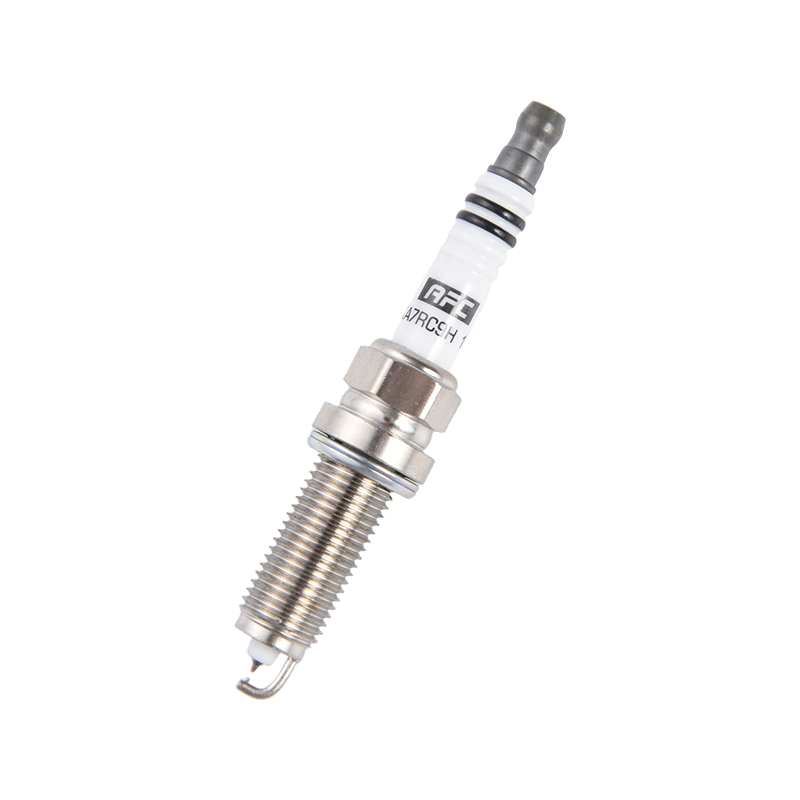

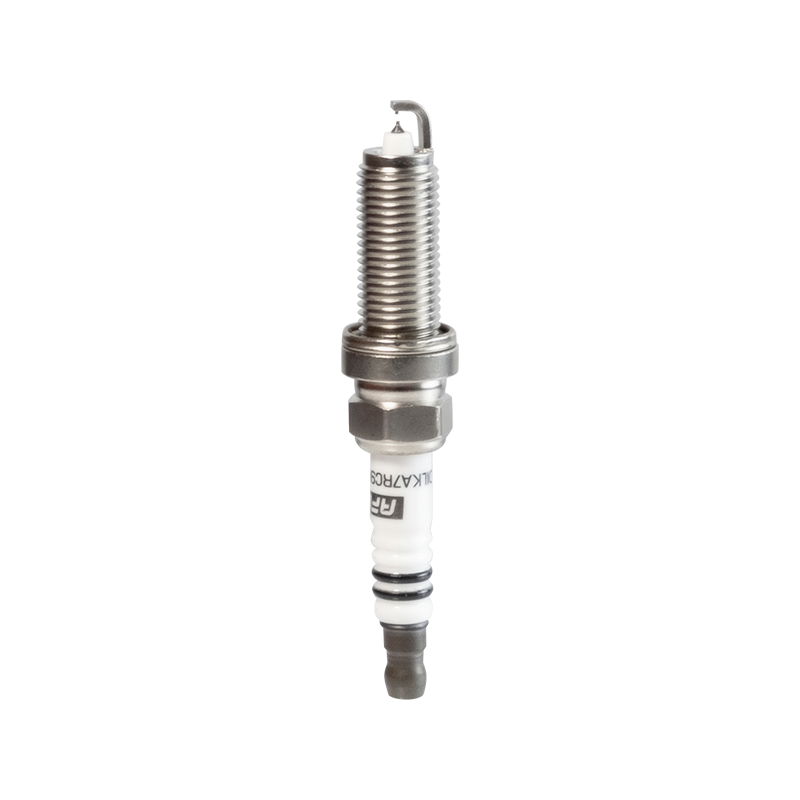

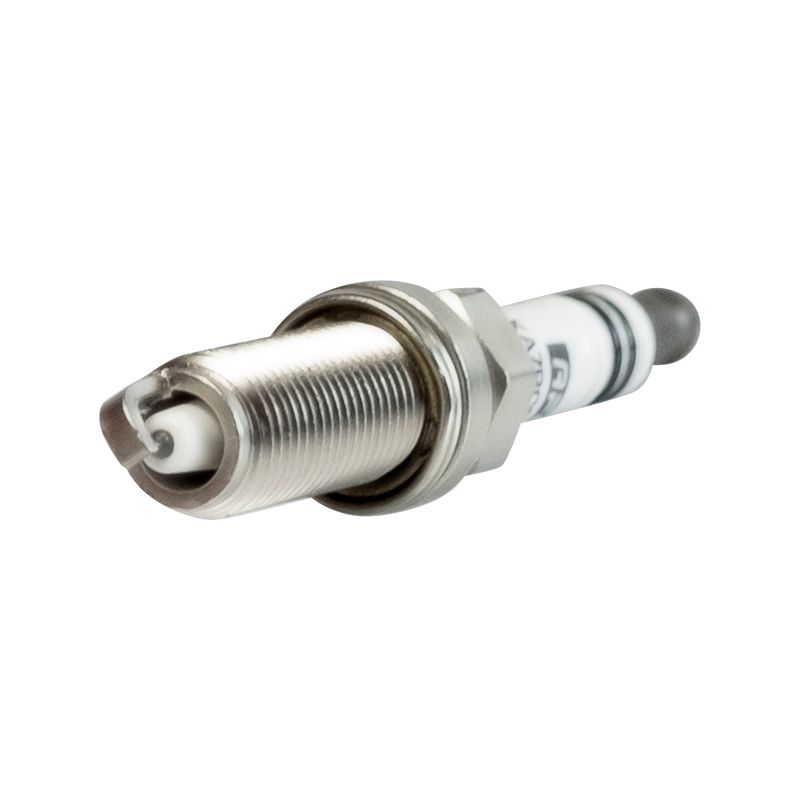

The 1710 DILKA7RC9H is a dual iridium spark plug with a 12mm thread diameter and a 0.035-inch clearance, suitable for Japanese vehicles such as the Infiniti ESQ 1.6T and Nissan 2.0L. It features a dual iridium electrode design, offering strong corrosion resistance, reducing electrode wear, and significantly improving ignition stability. Its service life reaches 80,000-100,000 kilometers, reducing maintenance costs. Furthermore, its cold-type heat range design effectively balances the heat dissipation requirements of turbocharged engines, preventing carbon buildup or pre-ignition knocking, and avoiding the risk of electrode meltdown.
|
Shell |
|
|
Thread Diameter |
12mm |
|
Thread Pitch |
1.25mm |
|
Seat Type |
Gasket |
|
Reach |
26.5mm (1.043") |
|
Terminal Type |
Solid |
|
Overall Height |
ISO |
|
Gap |
0.9mm (.035") |
|
Torque |
20N.m |
|
Center Electrode |
|
|
Material |
Iridium |
|
Type |
Standard |
|
Size |
0.5mm |
|
Ground Electrode |
|
|
Material |
Iridium |
|
Type |
Standard |
|
Quantity |
1 |
|
Specifications |
|
|
Resistor |
Yes |
|
Heat Range |
7 |
|
Longevity |
80000-100000km |
