| CODE | DILKA8RP8SY |
| ITEM | AFC 1804 |
| REPLACEMENT | 122906A0A01 |
| DILKAR8P8SY | |
| 0242140565/VAR6NIP | |
| 92411 | |
| PRICE | contact us |
| MOQ | contact us |

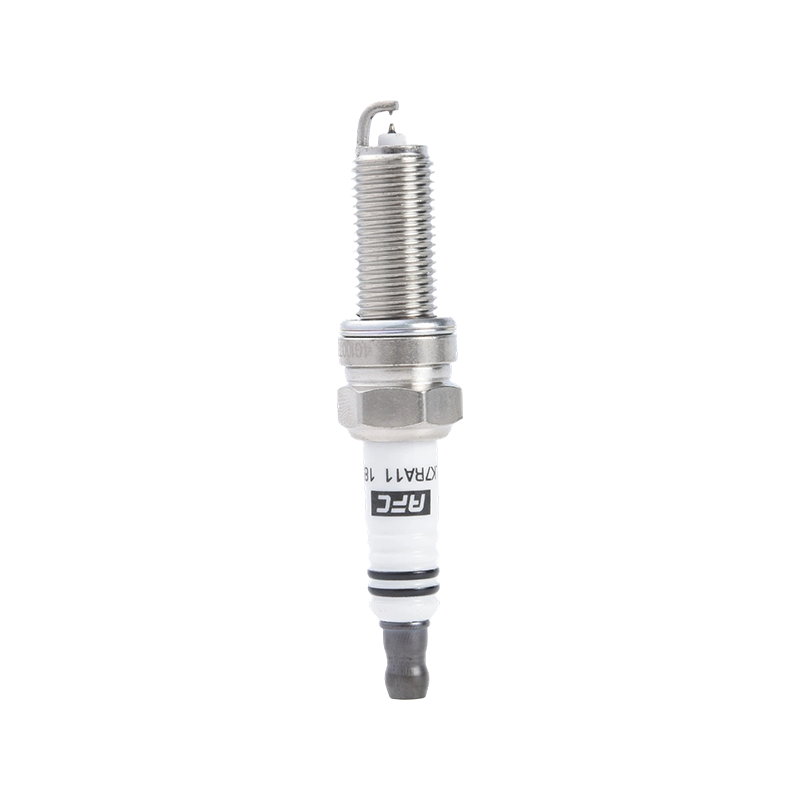

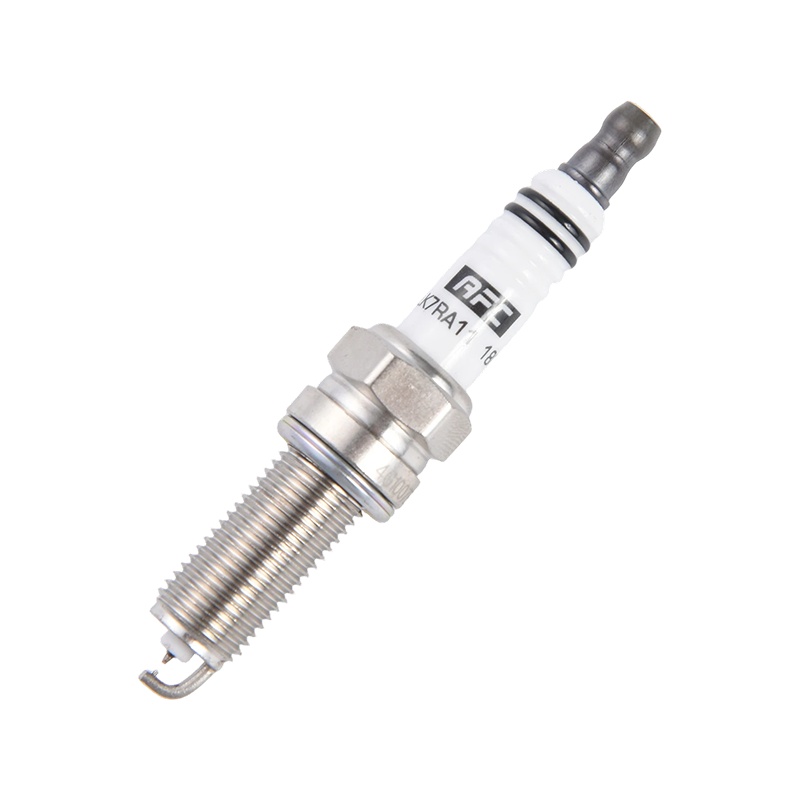

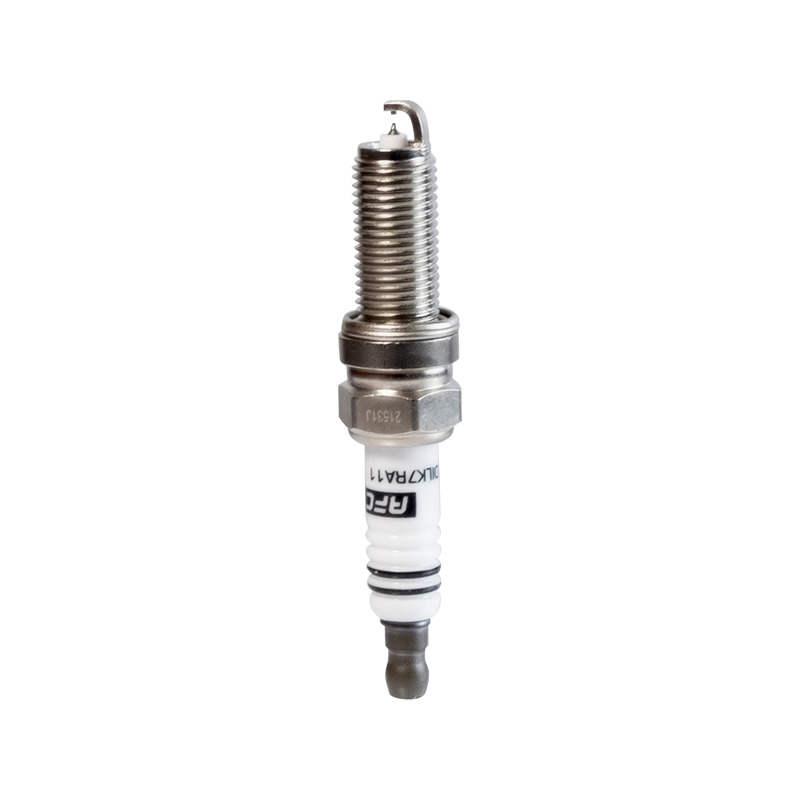

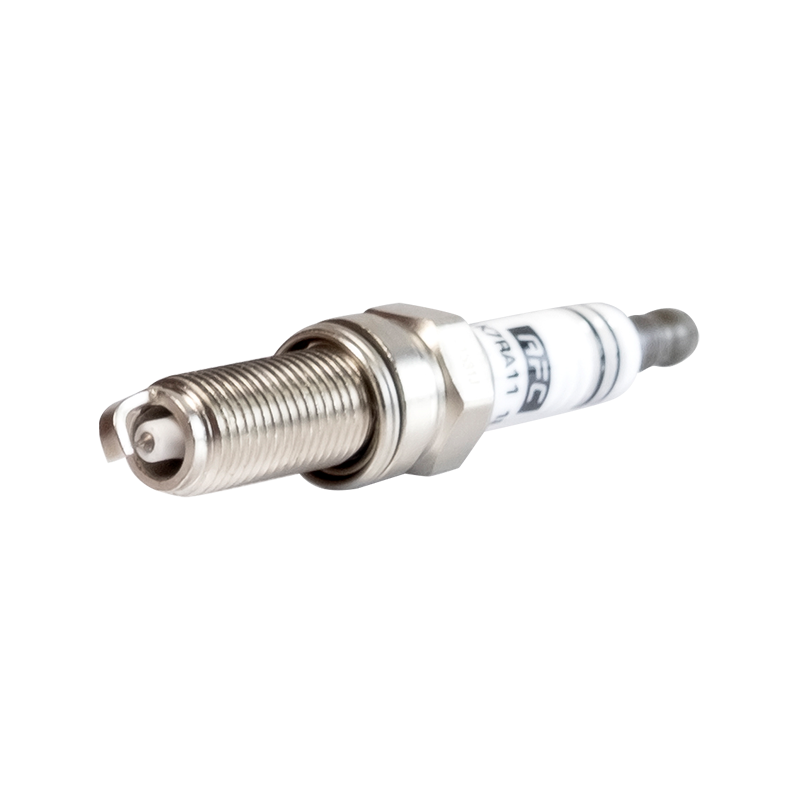

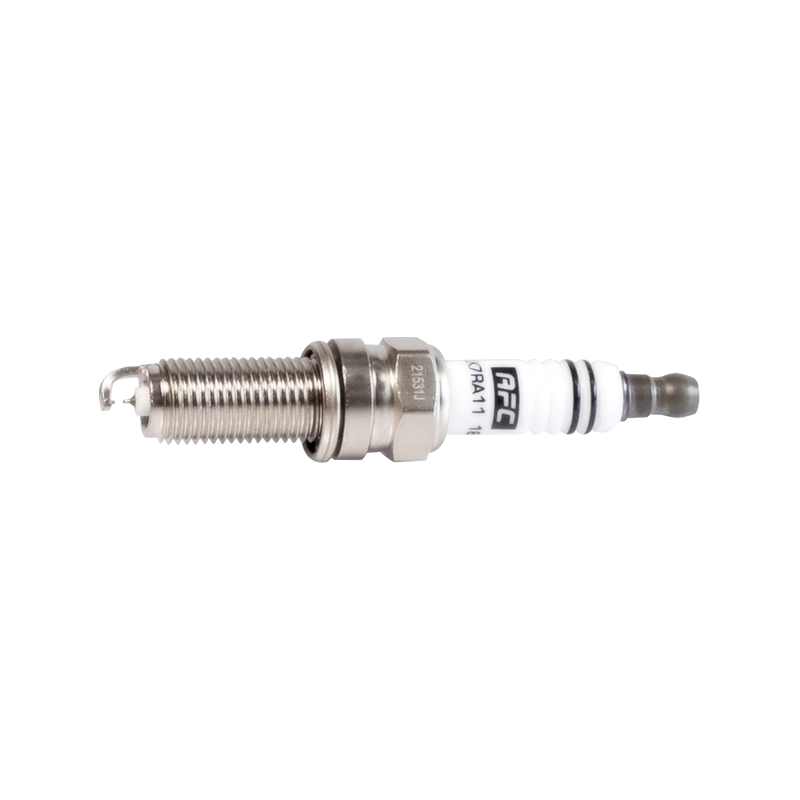

The 1803 DILK7RA11 is a dual iridium spark plug suitable for Hyundai, Kia K9, and other Korean vehicles. It features a dual iridium electrode design, offering strong corrosion resistance, reducing electrode wear, and significantly improving ignition stability. Its service life reaches 80,000-100,000 kilometers, reducing maintenance costs. Furthermore, its cold-type heat range design effectively balances the heat dissipation requirements of turbocharged engines, preventing carbon buildup or pre-ignition knocking, and avoiding the risk of electrode meltdown.
|
Shell |
|
|
Thread Diameter |
12mm |
|
Thread Pitch |
1.25mm |
|
Seat Type |
Gasket |
|
Reach |
26.5mm (1.043") |
|
Terminal Type |
Solid |
|
Overall Height |
ISO |
|
Gap |
1.1mm (.043") |
|
Torque |
20N.m |
|
Center Electrode |
|
|
Material |
Iridium |
|
Type |
Standard |
|
Size |
0.5mm |
|
Ground Electrode |
|
|
Material |
Iridium |
|
Type |
Standard |
|
Quantity |
1 |
|
Specifications |
|
|
Resistor |
Yes |
|
Heat Range |
7 |
|
Longevity |
80000-100000km |
