| CODE | ILF6RB |
| ITEM | AFC 1751 |
| REPLACEMENT | LR005483 A004 159 4503 A0041594503 |
| ILFR6B/ILFR6A | |
| FR7NI33/FR7NII33X/ | |
| REC8PYPB | |
| c2 IRIDIUM PLATINUM | |
| 6481 | |
| PRICE | contact us |
| MOQ | contact us |

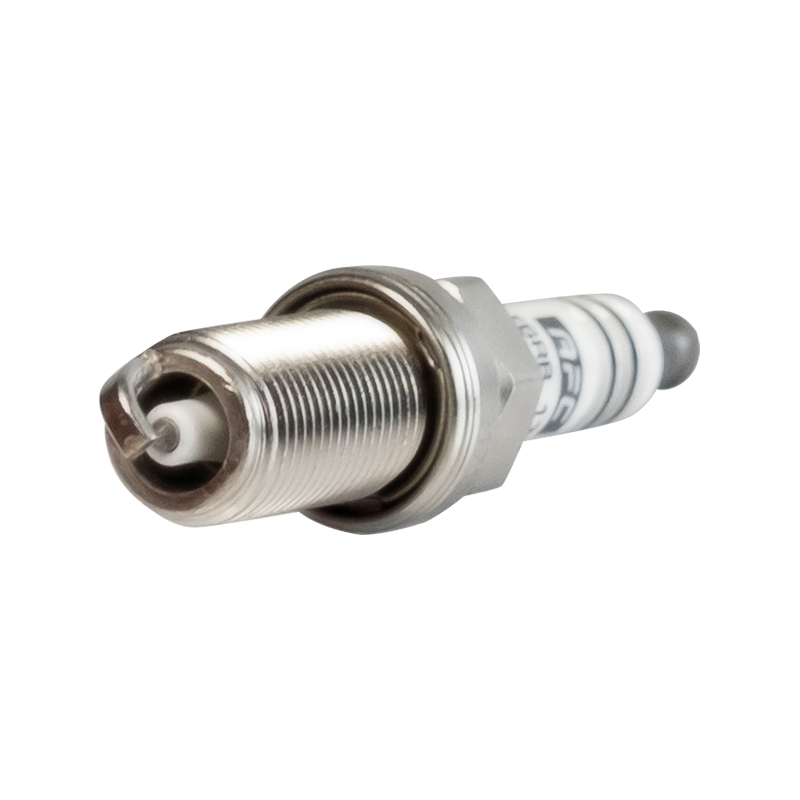

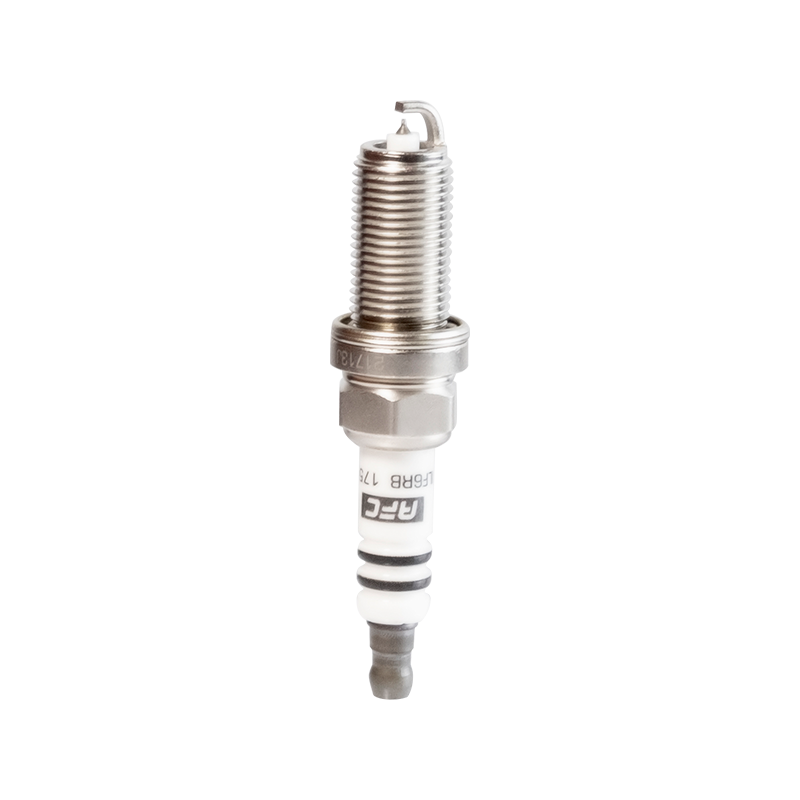

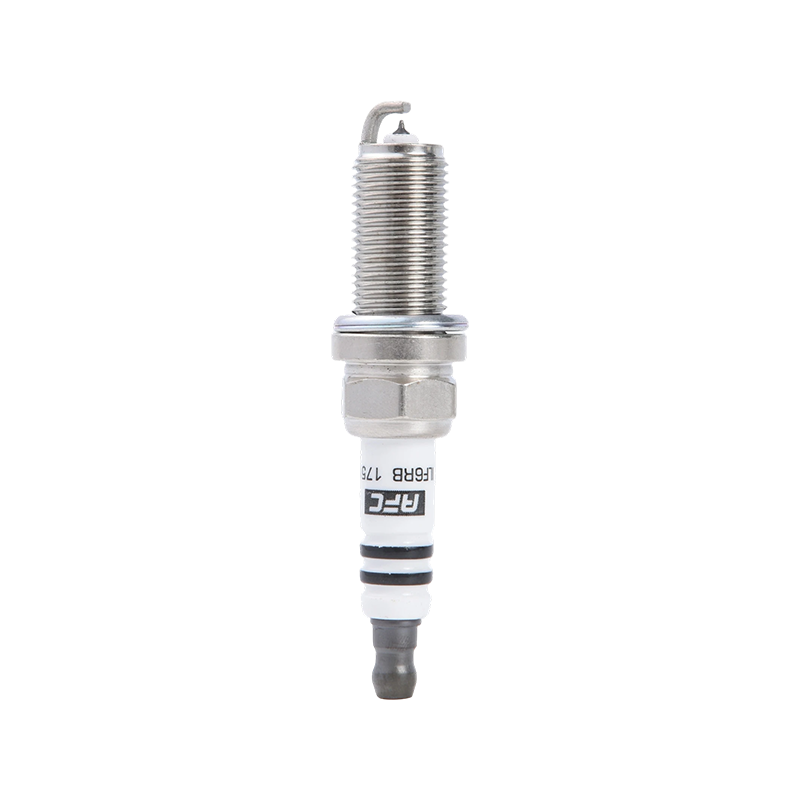

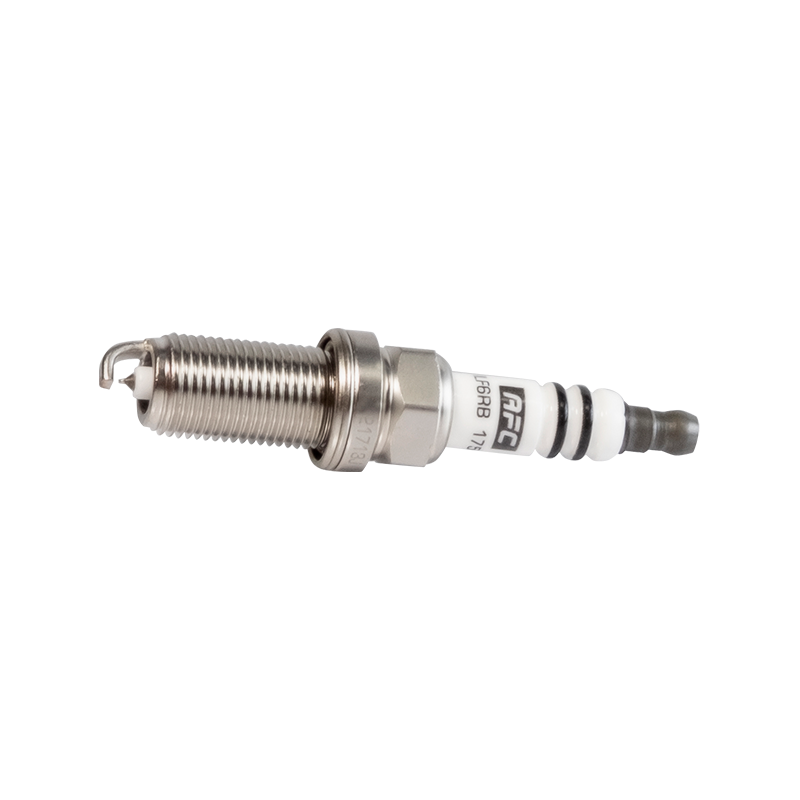

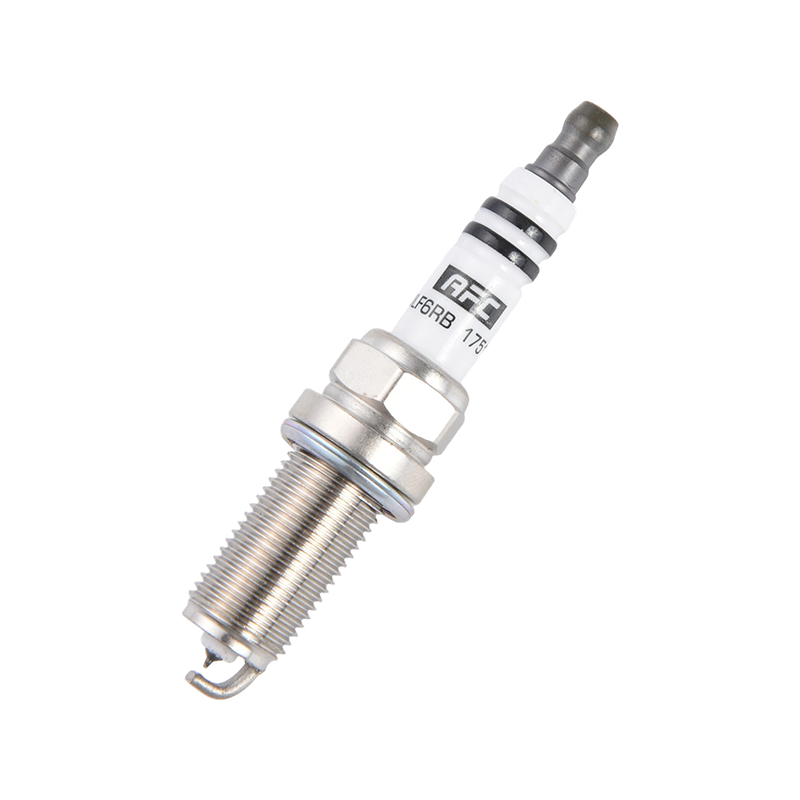

The 1751 ILF6RB is an iridium-platinum spark plug suitable for vehicles like the Bens and Subaru, designed to improve engine ignition efficiency and durability. Its core advantage lies in its dual precious metal electrodes: an iridium center electrode and a platinum side electrode. These electrodes offer superior high-temperature resistance and corrosion resistance, ensuring stable ignition under high pressure and reducing the risk of misfires. This significantly improves ignition efficiency and combustion stability, reduces electrode wear, and extends service life to 60,000-80,000 kilometers. Furthermore, its heat range of 6 makes it suitable for high-compression engines and turbocharged conditions, effectively balancing heat dissipation efficiency and ignition performance.
|
Shell |
|
|
Thread Diameter |
14mm |
|
Thread Pitch |
1.25mm |
|
Seat Type |
Gasket |
|
Reach |
26.5mm (1.043") |
|
Terminal Type |
Solid |
|
Overall Height |
ISO |
|
Gap |
0.8mm (.031") |
|
Torque |
30N.m |
|
Center Electrode |
|
|
Material |
Iridium |
|
Type |
Standard |
|
Size |
0.5mm |
|
Ground Electrode |
|
|
Material |
Platinum |
|
Type |
Standard |
|
Quantity |
1 |
|
Specifications |
|
|
Resistor |
Yes |
|
Heat Range |
6 |
|
Longevity |
60000-80000km |
