| CODE | BK5RE-11 |
| ITEM | AFC 1505 |
| REPLACEMENT | 1136000179 MS851357 |
| BKR5E-11/6953 | |
| FR7DC+/FR8DCX+ | |
| OE062/OE063/OE137/RC10YC4 | |
| K5RF11/K5RF11 | |
| 6953 | |
| PRICE | contact us |
| MOQ | contact us |

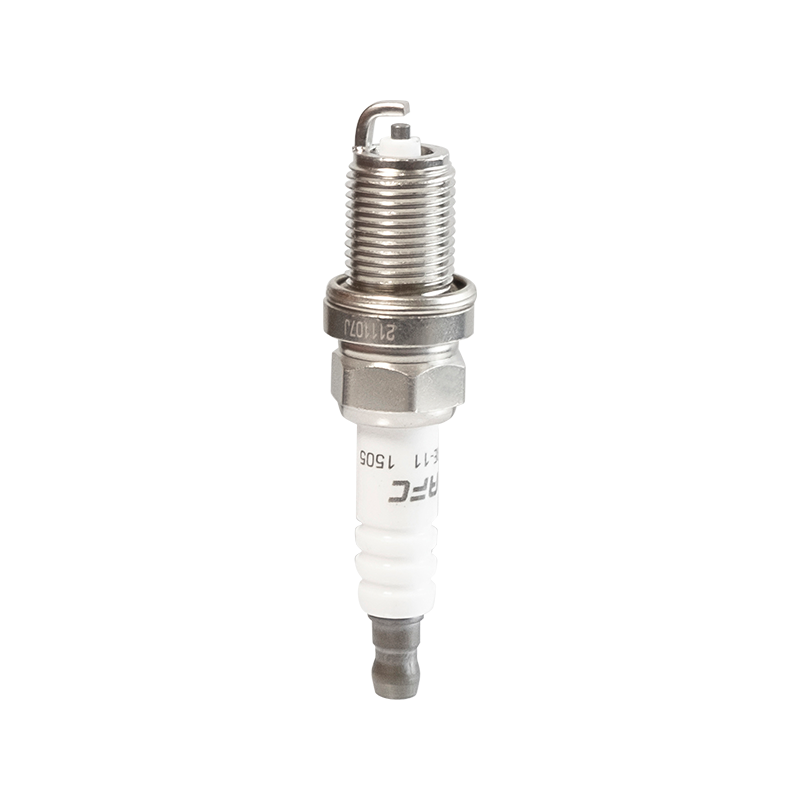

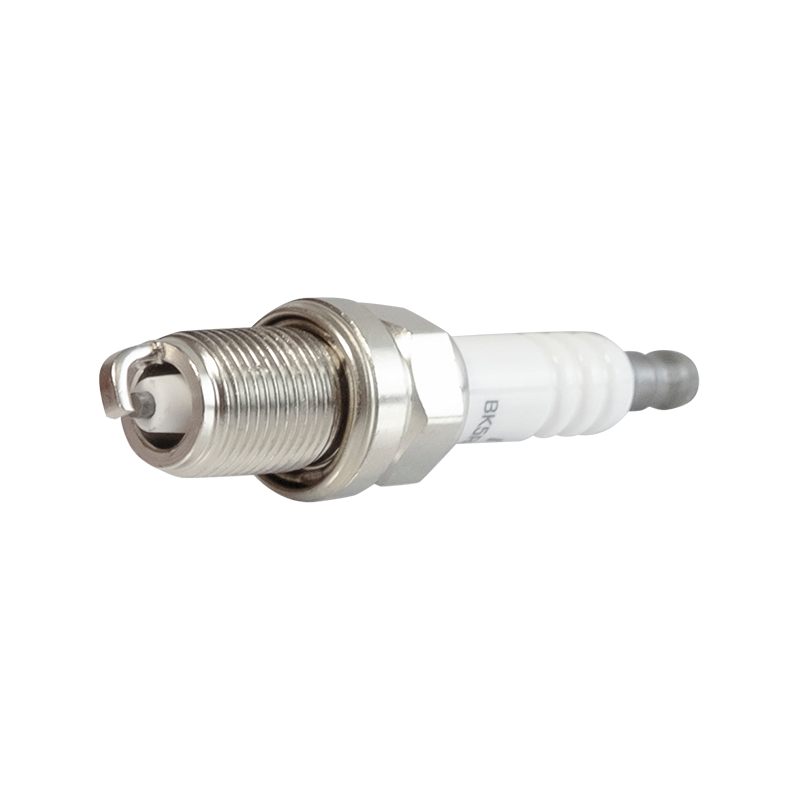

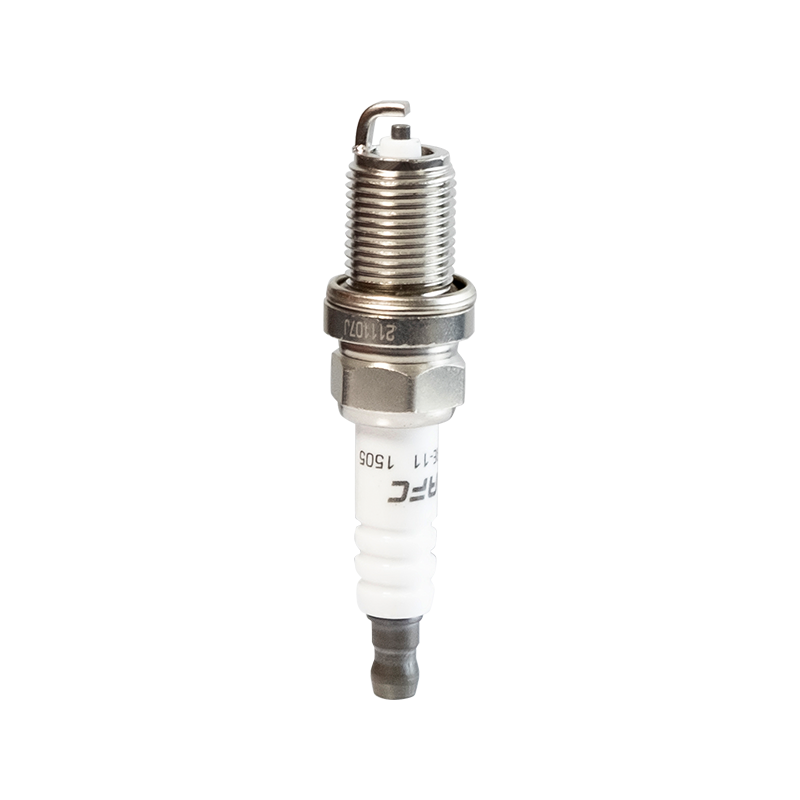

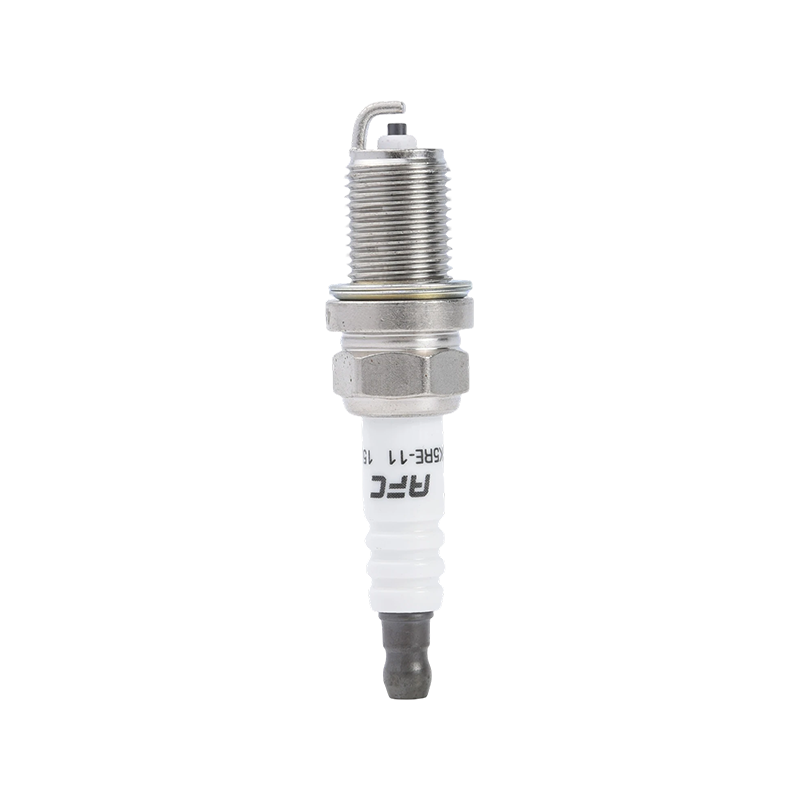

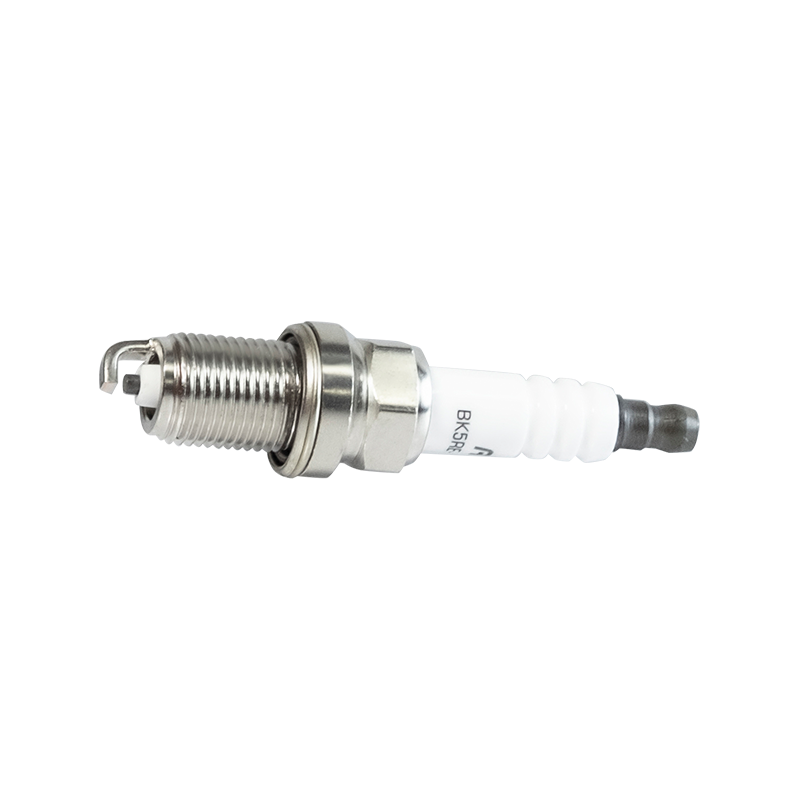

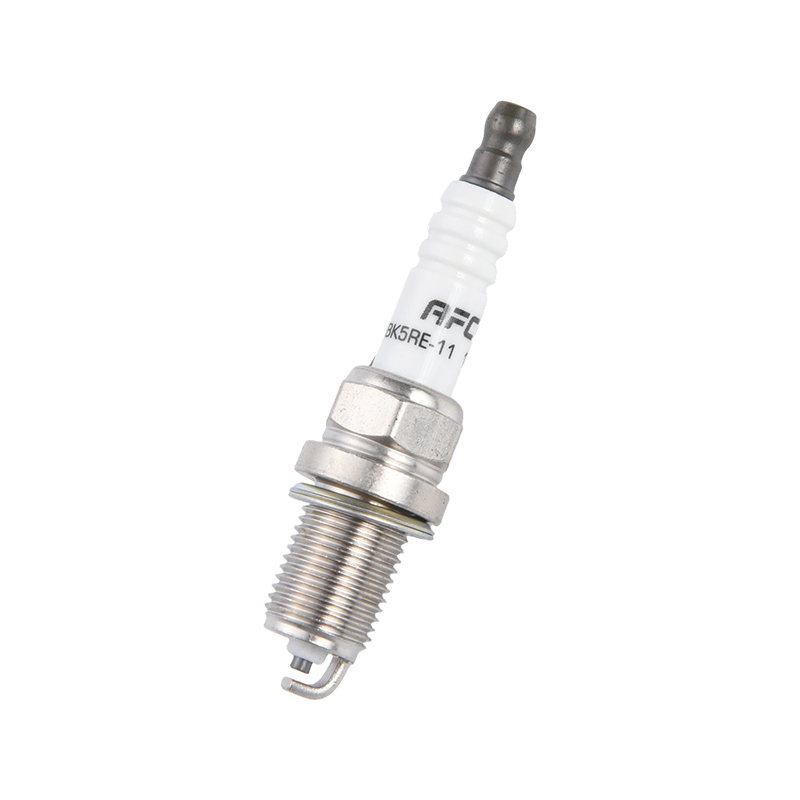

The 1505 BK5RE-11 is a nickel-copper spark plug with a 14mm thread diameter, 19mm length, and 0.043-inch gap, suitable for various Chinese and Japanese car models. It's well-suited for frequent stop-and-go city driving, reducing carbon buildup and providing stable idling performance that can improve vibration issues in older models. Although its lifespan is relatively short (approximately 25,000 km), its unit price is only one-third that of precious metal spark plugs, and its two-stage electrode structure reduces the risk of unilateral electrode wear, making it particularly suitable for car owners with limited budgets who prioritize short-term, low-cost maintenance.
|
Shell |
|
|
Thread Diameter |
14mm |
|
Thread Pitch |
1.25mm |
|
Seat Type |
Gasket |
|
Reach |
19mm (.748") |
|
Terminal Type |
Solid |
|
Overall Height |
ISO |
|
Gap |
1.1mm (.043") |
|
Torque |
30N.m |
|
Center Electrode |
|
|
Material |
Nickel |
|
Type |
Standard |
|
Size |
2.5mm |
|
Ground Electrode |
|
|
Material |
Nickel |
|
Type |
Standard |
|
Quantity |
1 |
|
Specifications |
|
|
Resistor |
Yes |
|
Heat Range |
5 |
|
Longevity |
25000km |
