| CODE | ILT6RM9G |
| ITEM | AFC 1756 |
| REPLACEMENT | 12647827 12626906 12681659 |
| ILKAR8N8/ILZKAR8G8 | |
| RERX5ZPYPB | |
| TORCH5-3748 | |
| 94489 | |
| PRICE | contact us |
| MOQ | contact us |

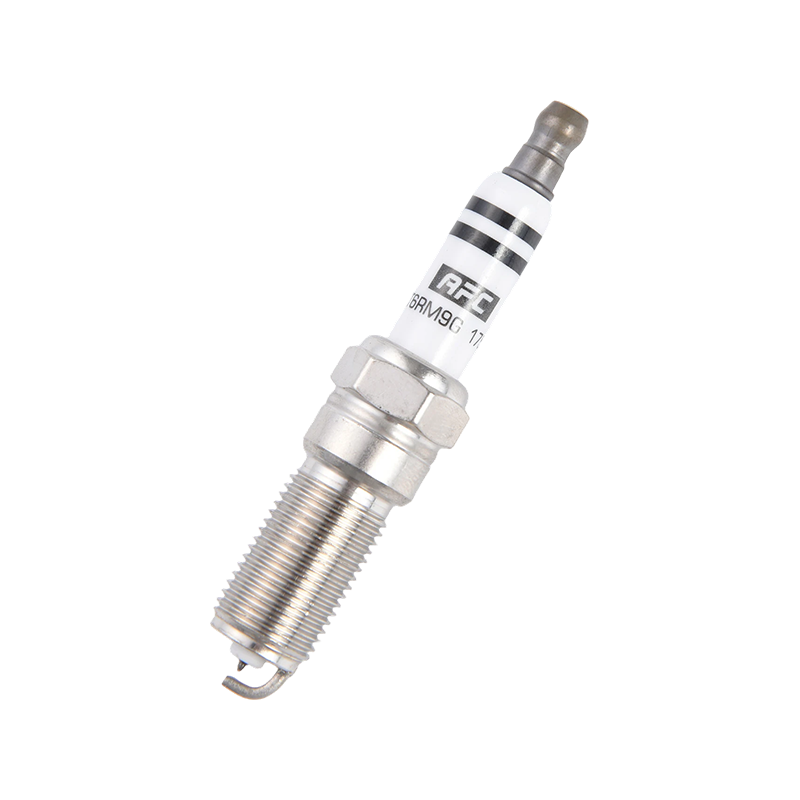

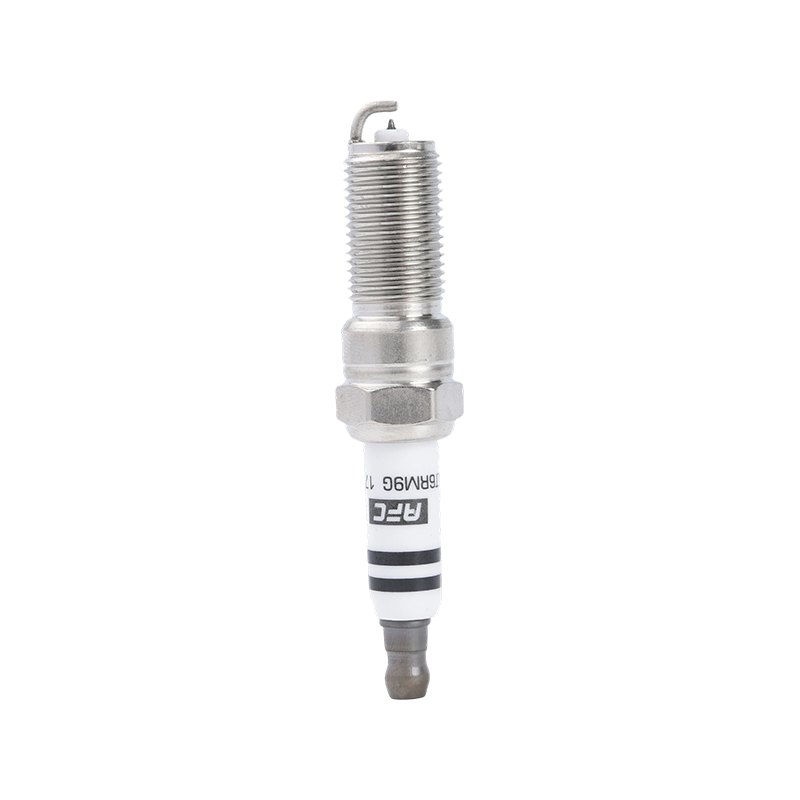

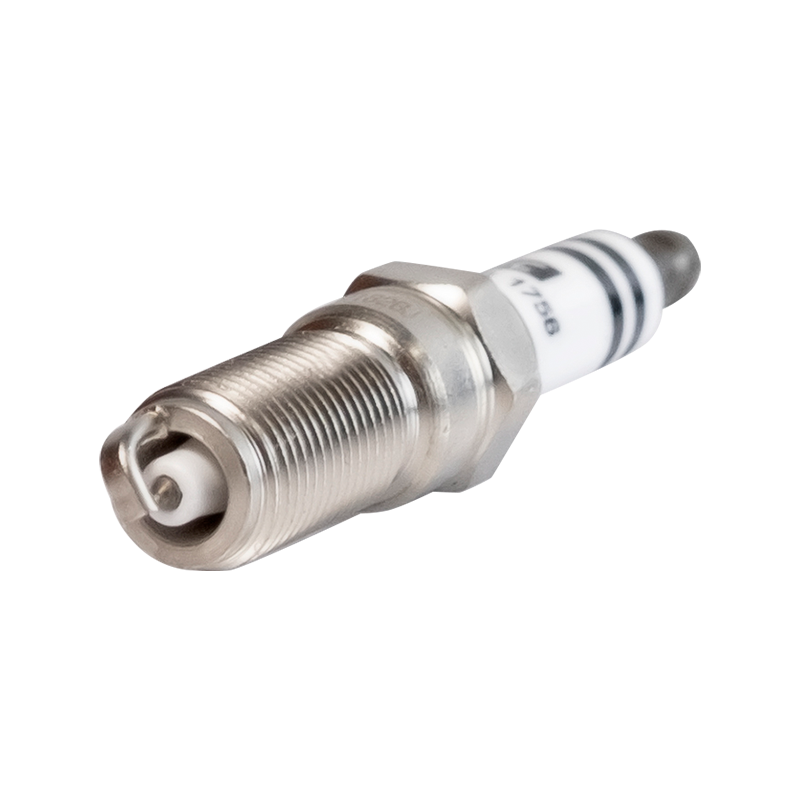

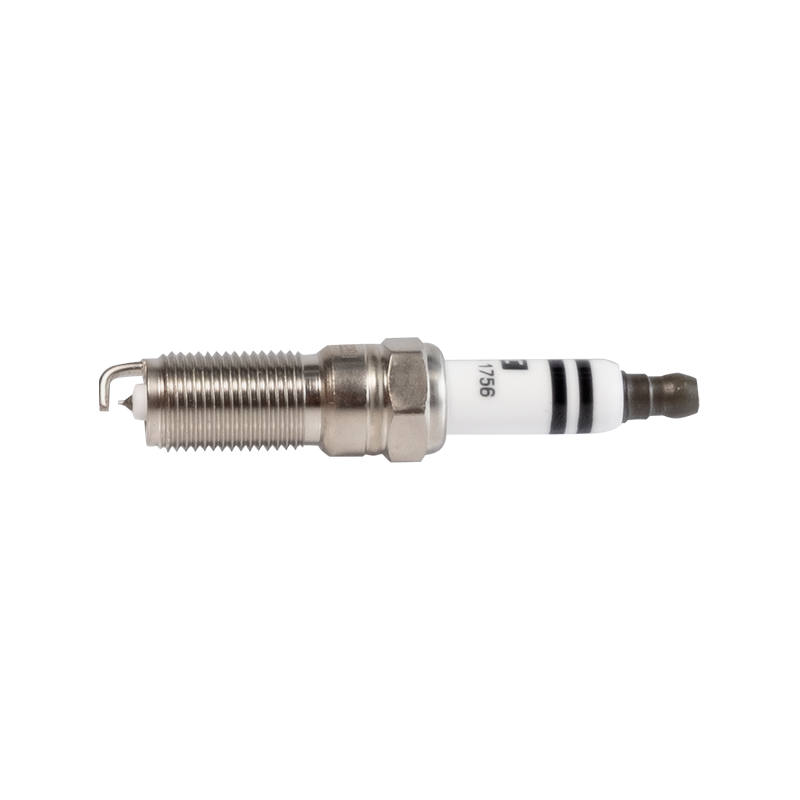

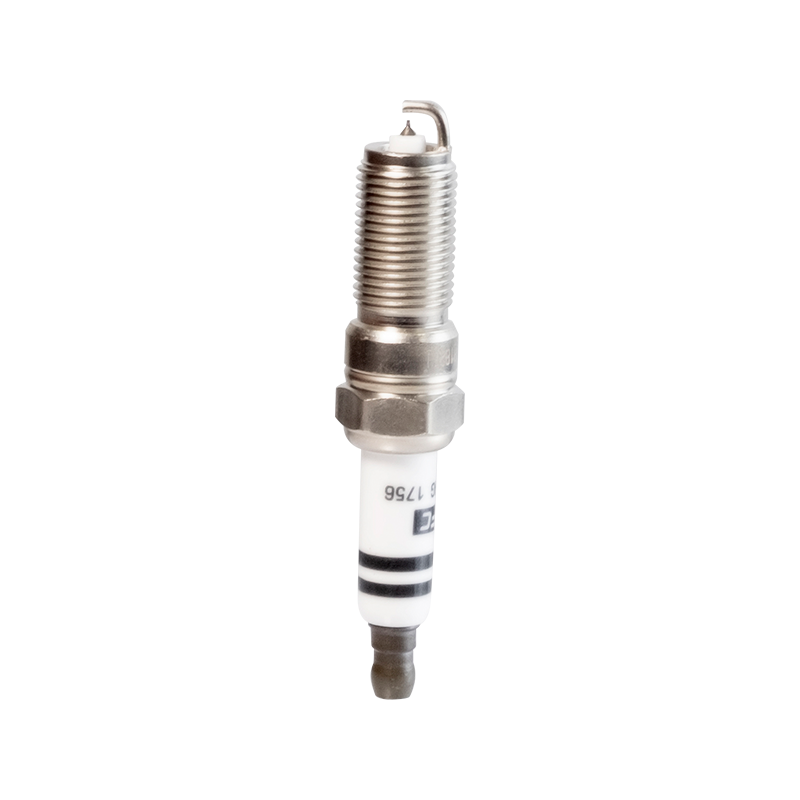

The 1756 ILT6RM9G is an iridium-platinum spark plug designed specifically for high-performance naturally aspirated and turbocharged engines. It's compatible with GM's LTG 2.0T engine, found in models such as the Buick Regal, GL8, and Cadillac. Its core advantage lies in its dual-precious-metal combination of an iridium center electrode and a platinum outer electrode, combined with an embedded copper core. This design accelerates heat transfer, reduces carbon buildup, and ensures stable ignition under high temperature and pressure conditions, resulting in a service life of 60,000-80,000 kilometers. Furthermore, the iridium-platinum electrode and tapered seat design improve combustion efficiency while significantly reducing maintenance costs.
|
Shell |
|
|
Thread Diameter |
14mm |
|
Thread Pitch |
1.25mm |
|
Seat Type |
Tapered |
|
Reach |
25mm (1") |
|
Terminal Type |
Solid |
|
Overall Height |
ISO |
|
Gap |
0.9mm (.035") |
|
Torque |
20N.m |
|
Center Electrode |
|
|
Material |
Iridium |
|
Type |
Standard |
|
Size |
0.5mm |
|
Ground Electrode |
|
|
Material |
Platinum |
|
Type |
Standard |
|
Quantity |
1 |
|
Specifications |
|
|
Resistor |
Yes |
|
Heat Range |
6 |
|
Longevity |
60000-80000km |
