| CODE | ILKA8RH6 |
| ITEM | AFC 1775 |
| REPLACEMENT | 32290011 8888596932 2036012300 22401AA830 |
| SILKR8E7G/SILKR7E7G | |
| YR6NPP332/YR7SII33T | |
| TORCH22-36417/OE208 | |
| 96024 | |
| PRICE | contact us |
| MOQ | contact us |

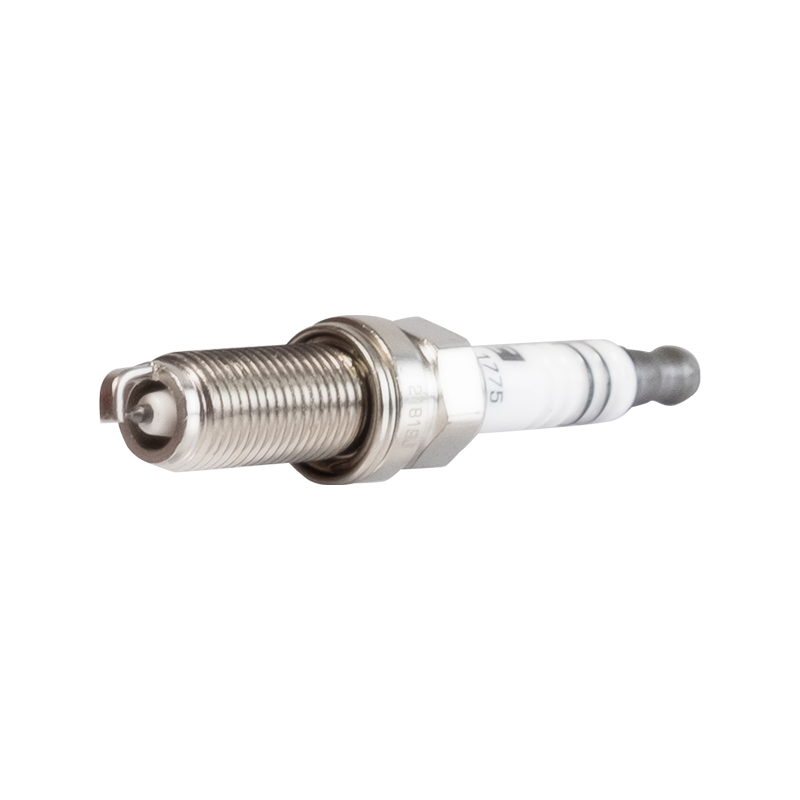

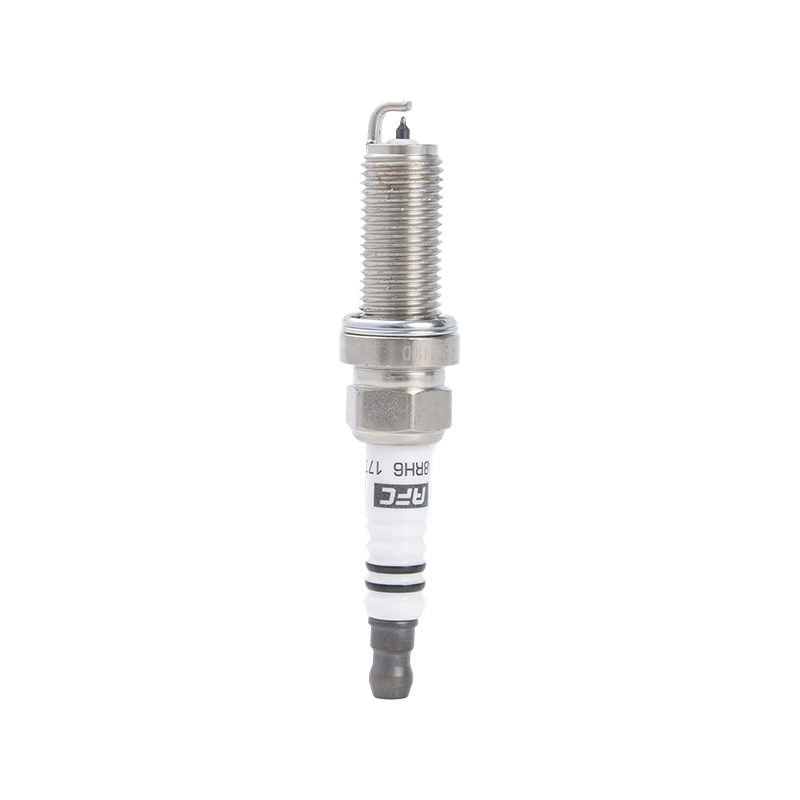

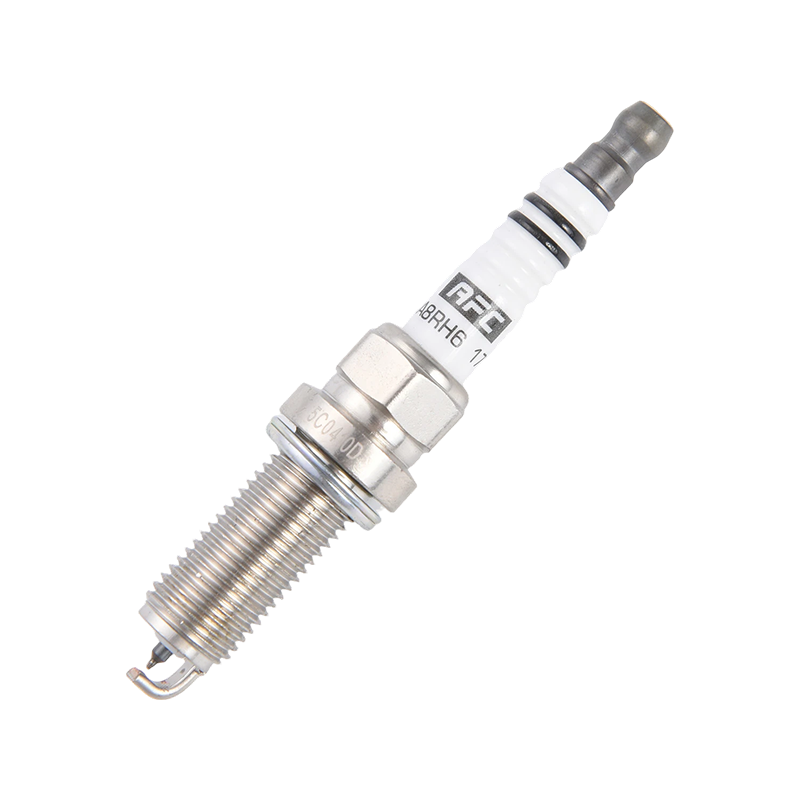

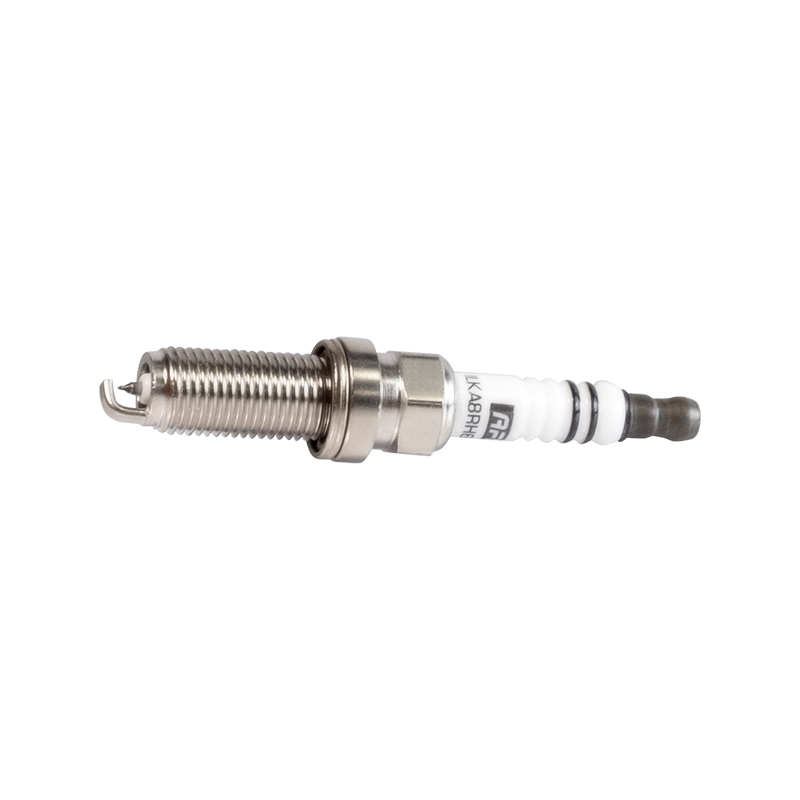

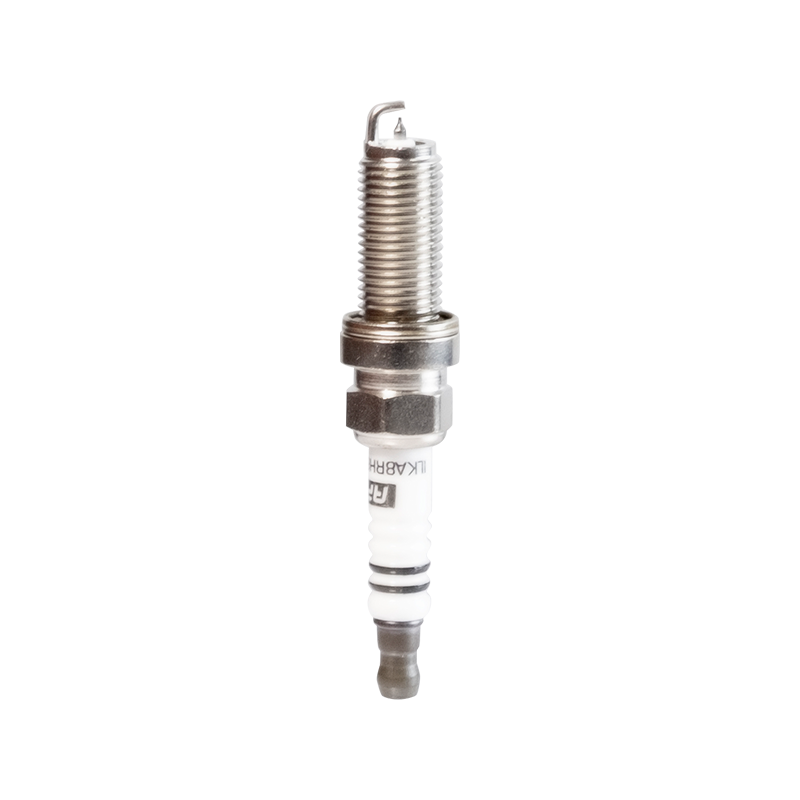

The 1775 ILKA8RH6 is a dual precious metal spark plug designed specifically for high-performance turbocharged and naturally aspirated engines, and is strictly matched to models such as the Subaru Forester 2.0T and Legacy. It employs an iridium center electrode and a platinum side electrode combination, which avoids ignition delay or misfire problems caused by electrode wear, significantly improving heat dissipation efficiency and corrosion resistance. Its core advantages include: a service life of up to 80,000 kilometers, reducing overall maintenance costs; the iridium-platinum electrode design concentrates ignition energy, optimizes combustion efficiency, and reduces idling vibration and cold start difficulties. Furthermore, its cold-type heat range design effectively balances the heat dissipation requirements of turbocharged engines, preventing carbon buildup or pre-ignition knocking, and avoiding the risk of electrode meltdown.
|
Shell |
|
|
Thread Diameter |
12mm |
|
Thread Pitch |
1.25mm |
|
Seat Type |
Gasket |
|
Reach |
26.5mm (1.043") |
|
Terminal Type |
Solid |
|
Overall Height |
ISO |
|
Gap |
0.6mm (.024") |
|
Torque |
20N.m |
|
Center Electrode |
|
|
Material |
Iridium |
|
Type |
Standard |
|
Size |
0.5mm |
|
Ground Electrode |
|
|
Material |
Platinum |
|
Type |
Standard |
|
Quantity |
1 |
|
Specifications |
|
|
Resistor |
Yes |
|
Heat Range |
8 |
|
Longevity |
60000-80000km |
