| CODE | ILKA7RL-11 |
| ITEM | AFC 1774 |
| REPLACEMENT | PE5R18110 |
| ILZTR6A8G | |
| HR7TII3320T | |
| TORCH17-31416 | |
| 94124 | |
| PRICE | contact us |
| MOQ | contact us |

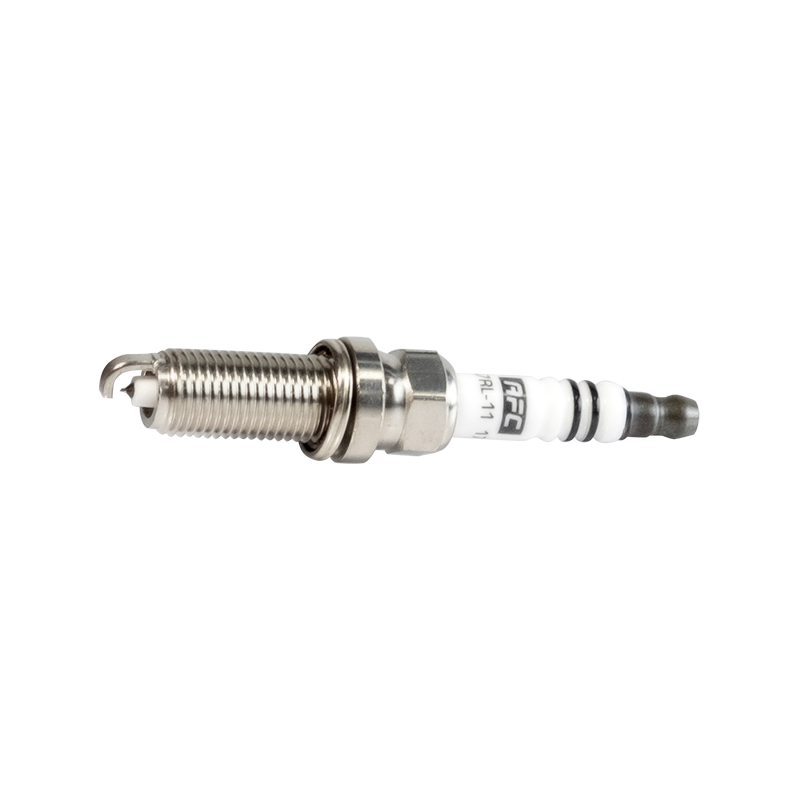

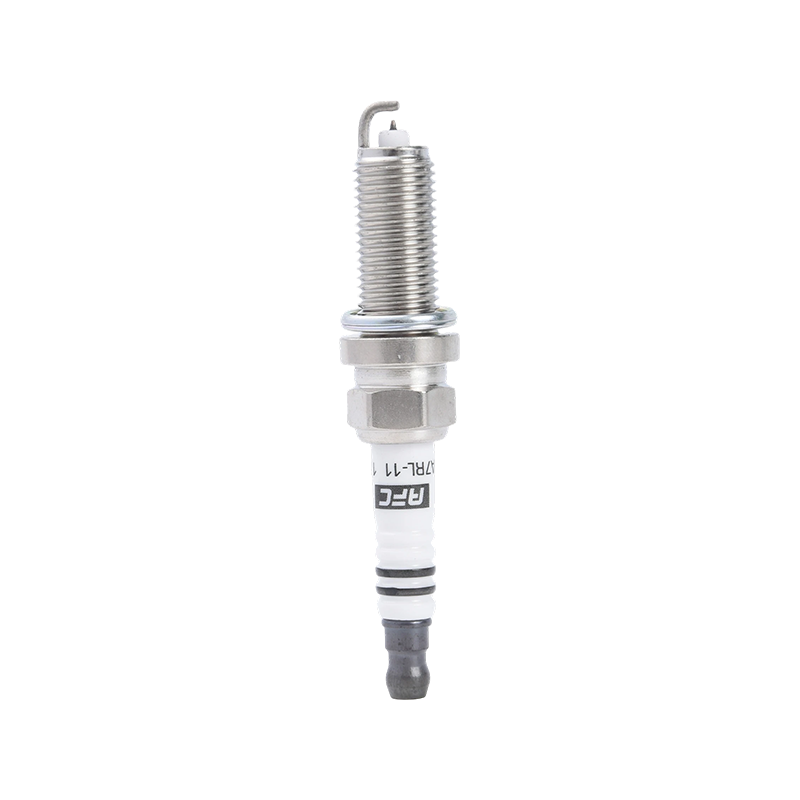

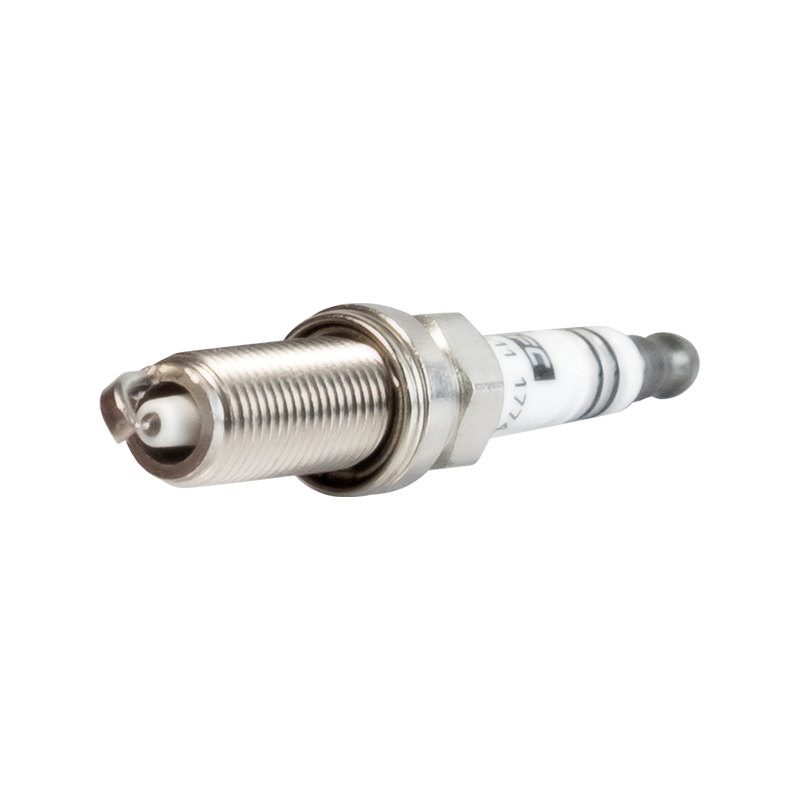

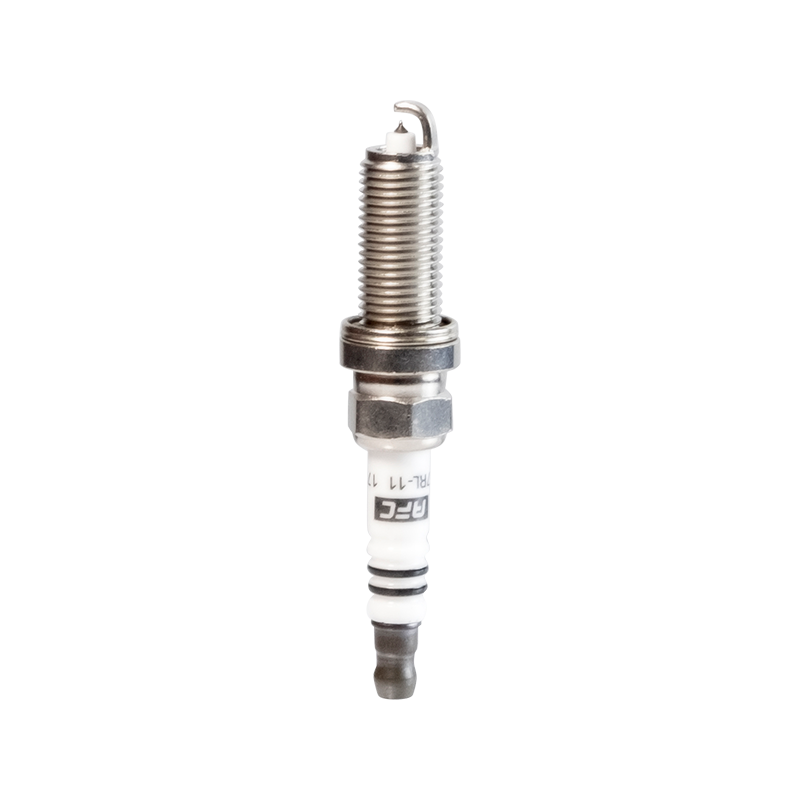

The 1774 ILKA7RL-11 is an iridium-platinum spark plug suitable for Mazda CX-4/CX-5 models. It employs a dual-precious-metal combination of an iridium center electrode and a platinum side electrode, combined with a copper core electrode design. This avoids ignition delays or misfires caused by electrode wear, significantly improving heat dissipation efficiency and corrosion resistance. Its core advantages include: a service life of up to 80,000 kilometers, reducing overall maintenance costs; the iridium-platinum electrode design concentrates ignition energy, optimizes combustion efficiency, and reduces idling vibration and cold-start difficulties. Furthermore, its cold-type heat range design effectively balances the heat dissipation requirements of turbocharged engines, preventing carbon buildup or pre-ignition knocking, and avoiding the risk of electrode meltdown.
|
Shell |
|
|
Thread Diameter |
12mm |
|
Thread Pitch |
1.25mm |
|
Seat Type |
Gasket |
|
Reach |
26.5mm (1.043") |
|
Terminal Type |
Solid |
|
Overall Height |
ISO |
|
Gap |
1.1mm (.043") |
|
Torque |
20N.m |
|
Center Electrode |
|
|
Material |
Iridium |
|
Type |
Standard |
|
Size |
0.5mm |
|
Ground Electrode |
|
|
Material |
Platinum |
|
Type |
Standard |
|
Quantity |
1 |
|
Specifications |
|
|
Resistor |
Yes |
|
Heat Range |
7 |
|
Longevity |
60000-80000km |
