| CODE | ILZKA8RH8S |
| ITEM | AFC 1772 |
| REPLACEMENT | 1229059B003 370701027LBP 3707100WEB03 |
| ILKAR8H6(ZXE24HLR7) | |
| VR6NII35T/VR6NII33S/VAR6NIP | |
| TORCH24 37438 | |
| 95112 | |
| PRICE | contact us |
| MOQ | contact us |

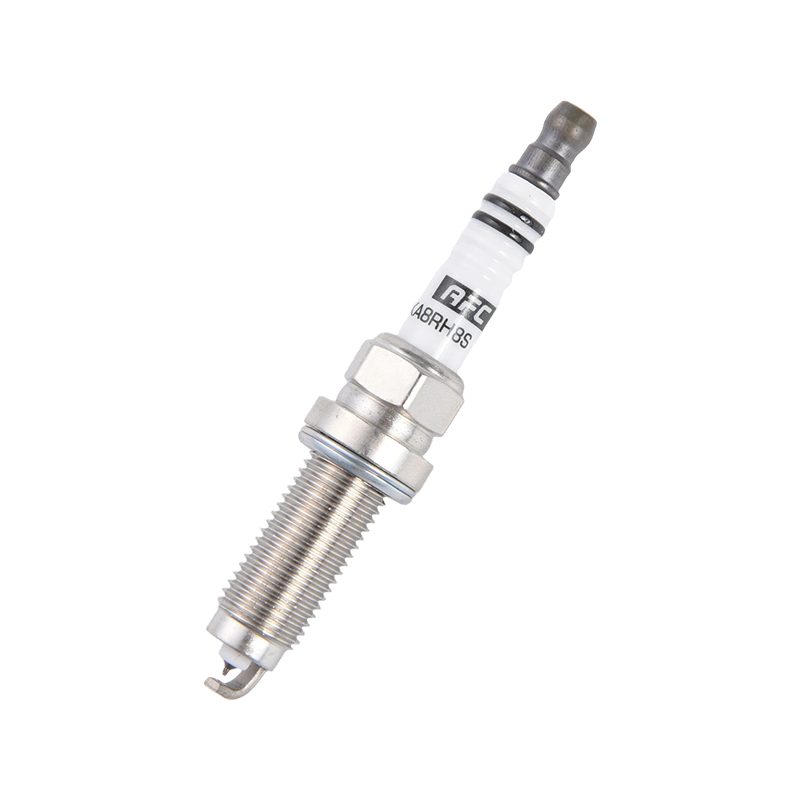

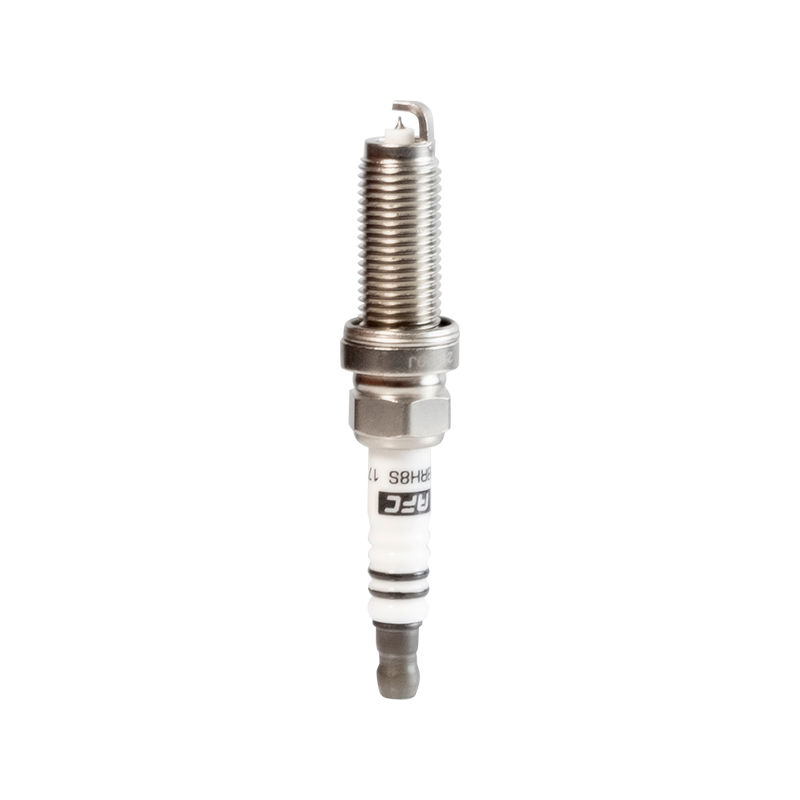

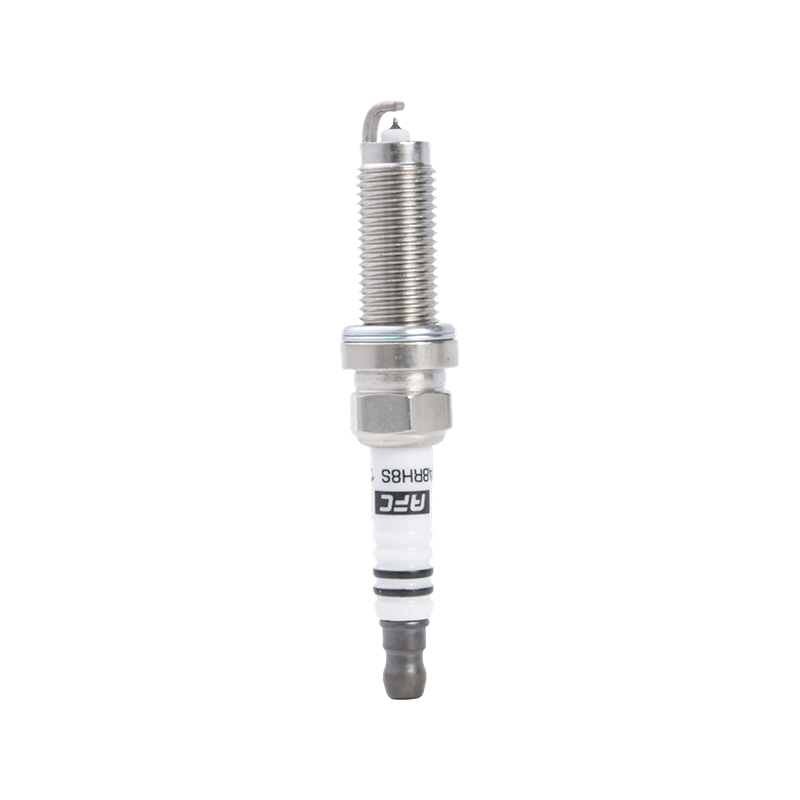

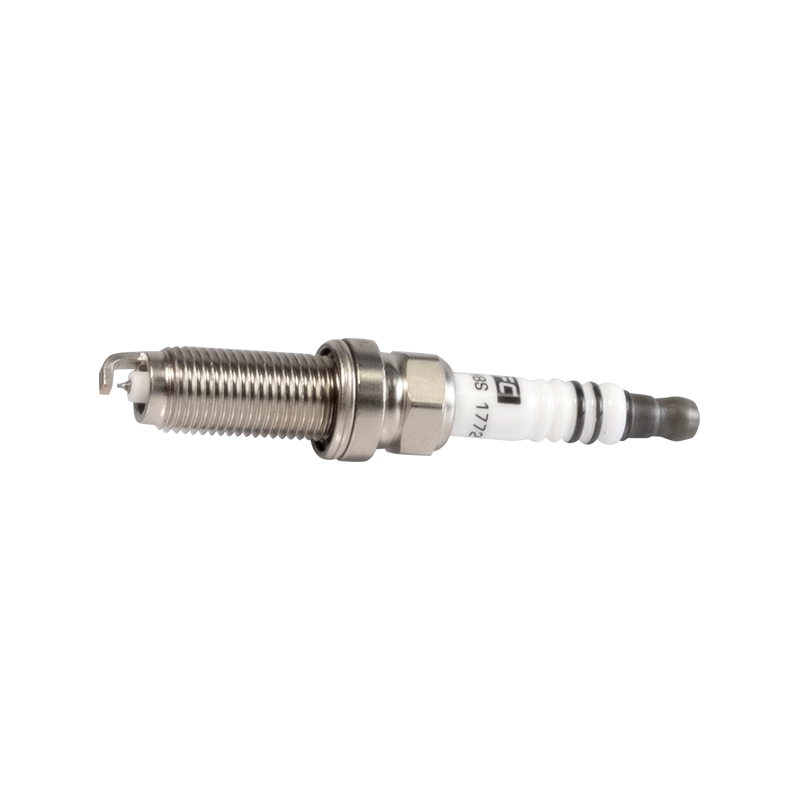

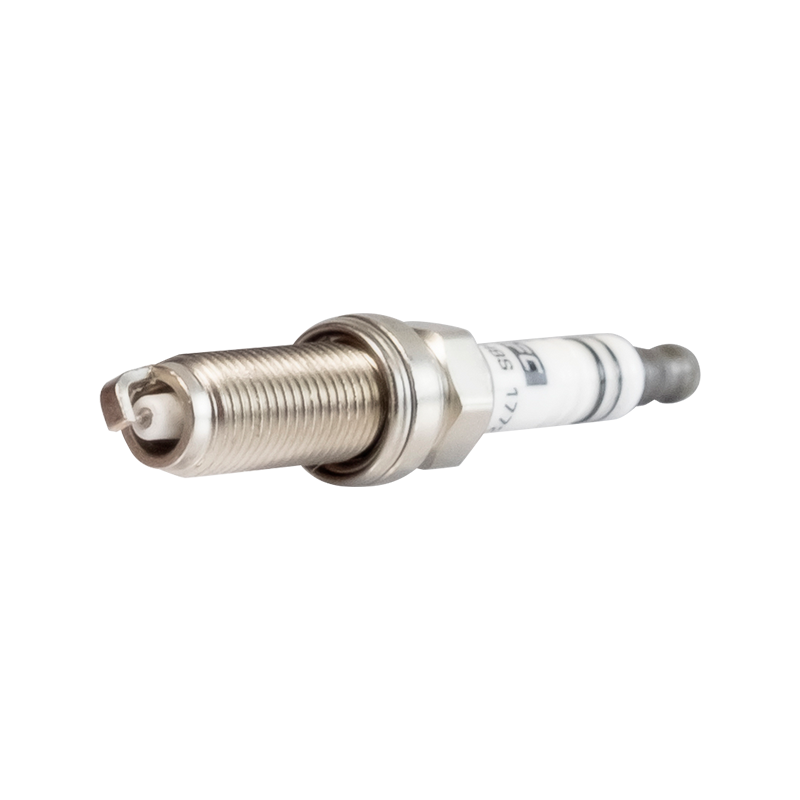

The 1772 ILZKA8RH8S is an iridium-platinum spark plug with a 26.5mm thread length, precisely designed for compatibility with Japanese cars like the Honda UR-V and domestic models like the Haval. It employs a dual-precious-metal combination of an iridium center electrode and platinum side electrodes, combined with a copper core electrode design, to avoid ignition delays or misfires caused by electrode wear, significantly improving heat dissipation efficiency and corrosion resistance. Its core advantages include: a service life of up to 80,000 kilometers, reducing overall maintenance costs; the iridium-platinum electrode design concentrates ignition energy, optimizes combustion efficiency, and reduces idling vibration and cold-start difficulties. Furthermore, its cold-type heat range design effectively balances the heat dissipation requirements of turbocharged engines, preventing carbon buildup or pre-ignition knocking, and avoiding the risk of electrode meltdown.
|
Shell |
|
|
Thread Diameter |
12mm |
|
Thread Pitch |
1.25mm |
|
Seat Type |
Gasket |
|
Reach |
26.5mm (1.043") |
|
Terminal Type |
Solid |
|
Overall Height |
ISO |
|
Gap |
0.8mm (.031") |
|
Torque |
20N.m |
|
Center Electrode |
|
|
Material |
Iridium |
|
Type |
Standard |
|
Size |
0.5mm |
|
Ground Electrode |
|
|
Material |
Platinum |
|
Type |
Standard |
|
Quantity |
1 |
|
Specifications |
|
|
Resistor |
Yes |
|
Heat Range |
8 |
|
Longevity |
60000-80000km |
